On BMW E9X (E90/E91/E92/E93), a clean radar detector install is mostly a power-routing problem. Most bad installs fail in one of three ways: wrong power source (constant 12V), poor cable routing (rattles or trim pinch), or no serviceability plan. This guide gives a vehicle-specific, repeatable install workflow with mirror-tap and fuse-panel options.
Important:
E9X wiring varies by year, body style, mirror optioning (auto-dim/Homelink/rain-light sensor), and previous modifications. Treat any online wire color/fuse advice as a candidate, then verify with a multimeter on your car before final wiring.
Quick Jump

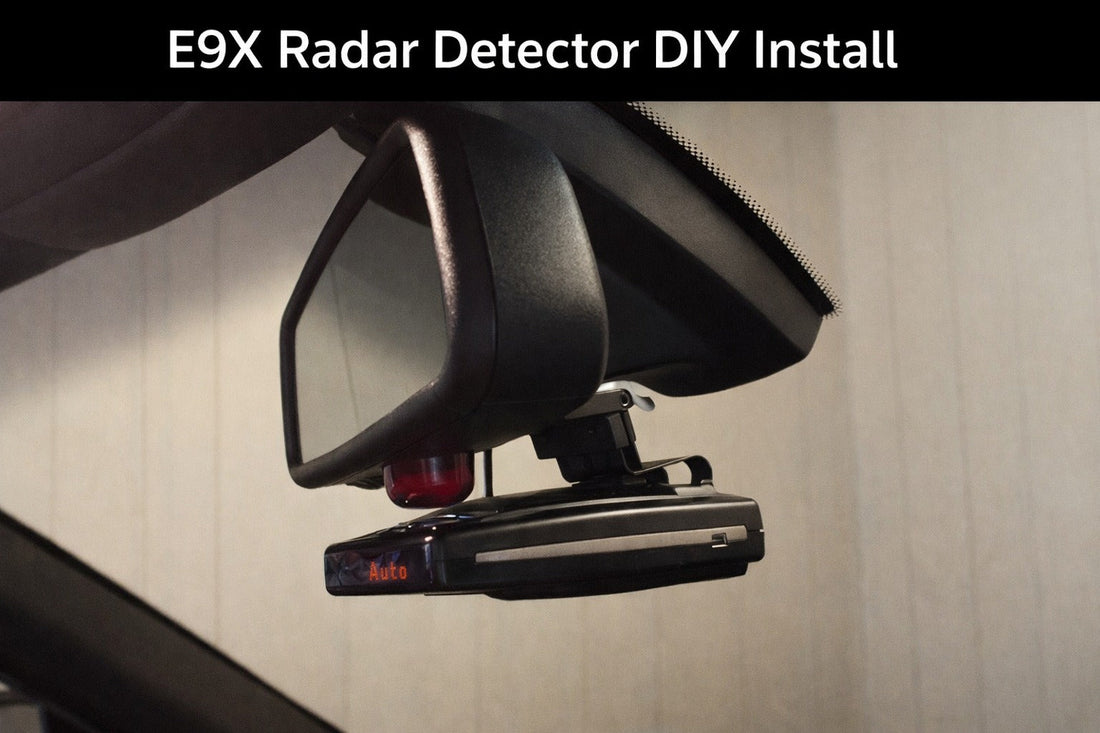

Detector mounting geometry by E9X body style
The goal is high mounting, level orientation, and clean rear visibility.
- E90/E92: high-center just below headliner near mirror is usually best balance of performance + stealth.
- E91 touring: keep detector high enough for long-range rear sightline, especially if cargo and rear tint reduce visibility.
- E93 convertible: be extra strict about rigid mount and cable strain relief due to chassis vibration/top mechanism packaging.
Quick note before you add accessories:
After detector wiring is stable, the E9X wireless charger oddments tray gives OEM-style phone charging without hogging your 12V socket or adding cable clutter.
See the E9X Wireless Charger Tray →
Mirror-tap location + polarity workflow (most OEM-looking)
Tap location: inside the rearview mirror shroud at the mirror harness connector. This is the cleanest path when your mirror has a valid switched feed.
Commonly reported E9X mirror wire conventions (verify before use)
| Signal | Typical BMW convention | How to verify |
|---|---|---|
| Ground (Terminal 31) | Often brown. Forum-reported on some EU E90 auto-dim mirrors: brown/brown-ish (connector bottom row, 2nd from right) | Continuity to chassis / 0V vs body ground |
| Switched +12V (Terminal 15 / wake feed) | Forum-reported on some EU E90 auto-dim mirrors: green/white (connector bottom row, 3rd from right) | ~12V with ignition on, 0V key-off/sleep |
Mirror-tap install flow
- Open the mirror shroud at the lower seam first (thumb pressure can work; trim tool optional). Avoid levering against windshield glass.
- Disconnect the mirror connector so probing/crimping is easier with the harness free.
- Probe connector with multimeter: identify true ground and switched +12V (do not assume rain-sensor wiring is a valid switched feed).
- Install fused mirror-tap lead with solid terminal retention and proper strain relief in the shroud.
- Test startup + shutdown timing (some cars retain accessory power briefly).
- Reassemble shroud and verify no cable pinch.
Reference photo: Start at the lower shroud seam and separate the housing gently with thumb pressure before using tools. Avoid prying against windshield glass.
Reference photo: Example splice/junction packaging behind mirror housing. Keep hardware compact, insulated, and positioned so it won’t interfere with shroud reassembly.
Switched 12V fuse-panel workflow (universal fallback)
If mirror wiring is uncertain, use fuse-panel hardwire. On most E9X cars, main interior fuses are behind the glovebox panel.
Common E9X candidate switched circuits used by owners (verify by meter first)
- 12V accessory socket feed
- Sunroof/accessory feed
- Other ignition-switched interior accessory circuit in fuse map
Fuse hardwire flow
- Identify candidate fuse from your exact fuse chart.
- Confirm with multimeter: +12V ignition on, 0V after key-off sleep.
- Use proper add-a-fuse and keep detector fuse sizing conservative.
- Ground to factory chassis point with clean metal contact.
- Function-test before closing glovebox/fuse trim.
Prefer wired charging instead of wireless?
The E9X USB oddments tray gives USB-C + USB-A fast charge in a factory-style fit, so your detector stays on dedicated power and your phone charging stays clean.
See the E9X USB Fast Charge Tray →
Cable routing that avoids rattles and safety issues
- Run cable along headliner edge with light tuck pressure only.
- Route down fixed trim path; avoid side-curtain airbag deployment zones.
- Keep cable away from steering-column movement and pedal box area.
- Secure slack at transitions to prevent buzz/rattle over rough roads.
Final validation checklist
- Detector powers on with ignition and turns off correctly after key-off.
- No CAN/accessory faults triggered after installation.
- No trim rattles, no cable visibility from normal seating position.
- Detector is level and has unobstructed forward/rear line of sight.
Bottom Line:
For E9X, quality comes from verified switched power, safe routing, and integrated charging strategy—not from hiding a messy install behind trim.
