Equipment Display Mount

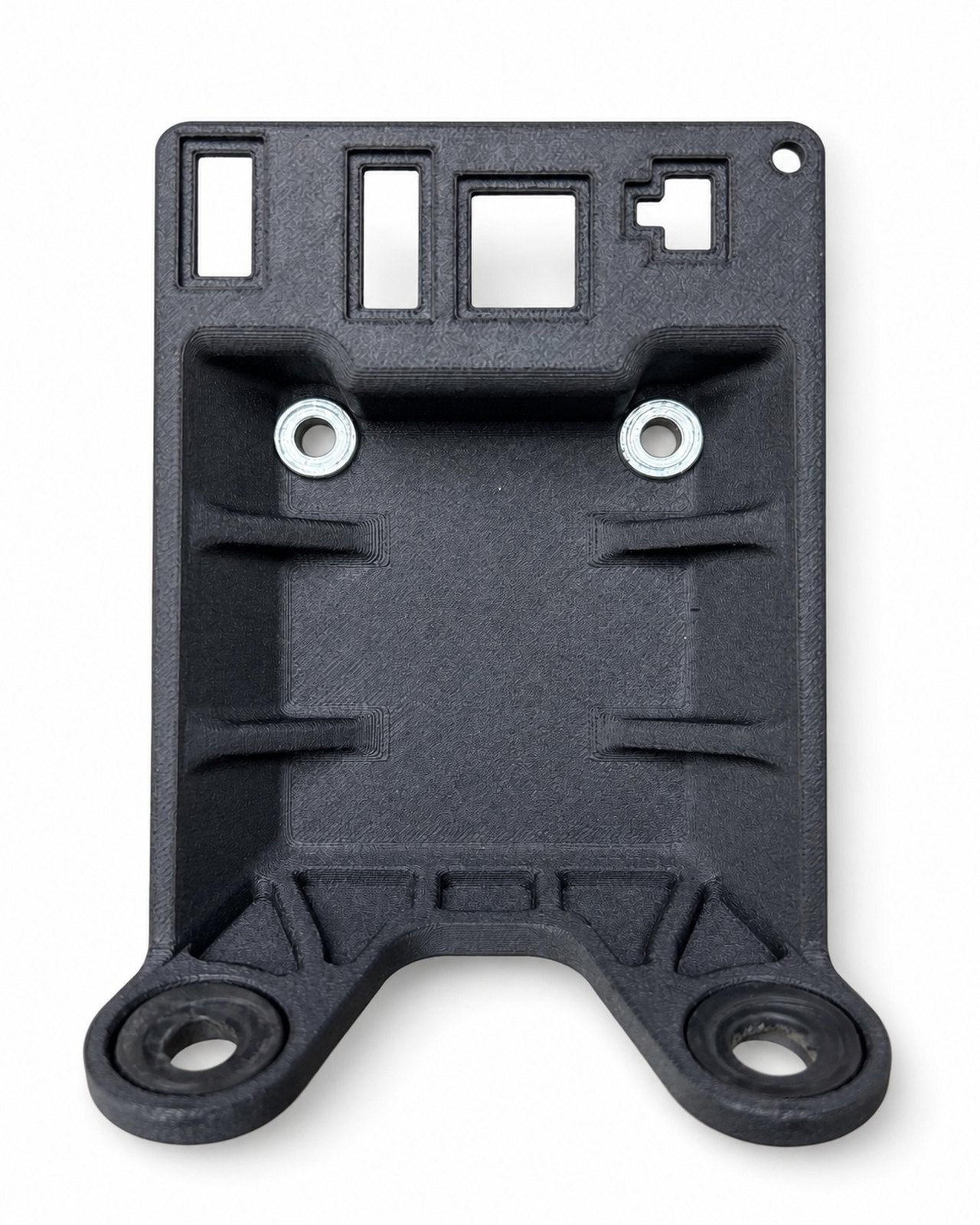

Black mounting bracket with two metal inserts and contoured lower mounting ears — The bracket viewed from the underside, with mounting features and metal inserts visible.

The photos show the bracket on a bench and installed with a small electronic display. Together, the views show how the compact part relates to its mounting location.

From part to installation

The underside photo shows openings, ribs, two metal inserts, and contoured mounting ears. The installed photo shows the display at the front of the assembly.

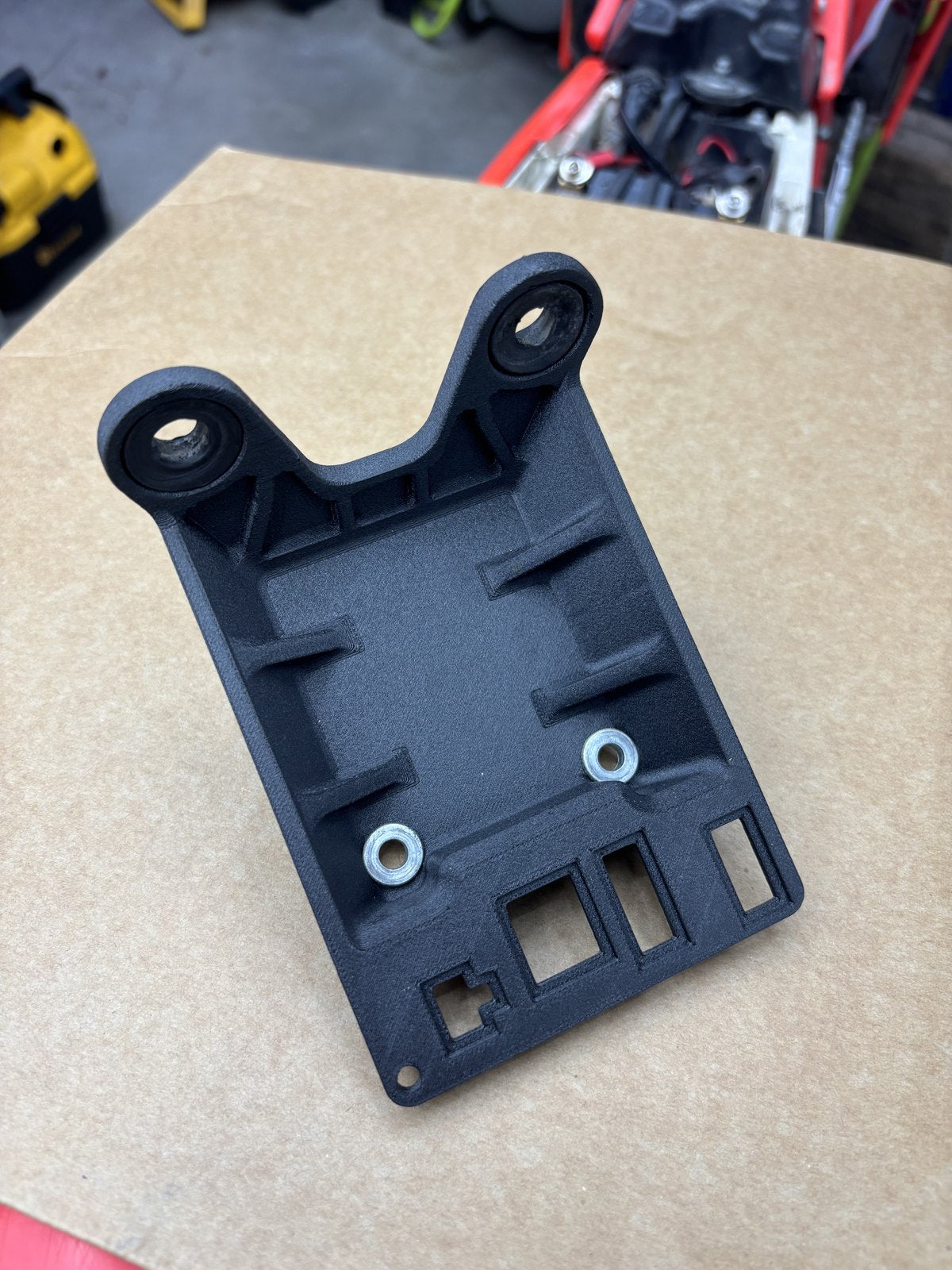

Black display bracket with mounting holes and metal inserts, photographed on a workbench — The bracket on the bench before installation.

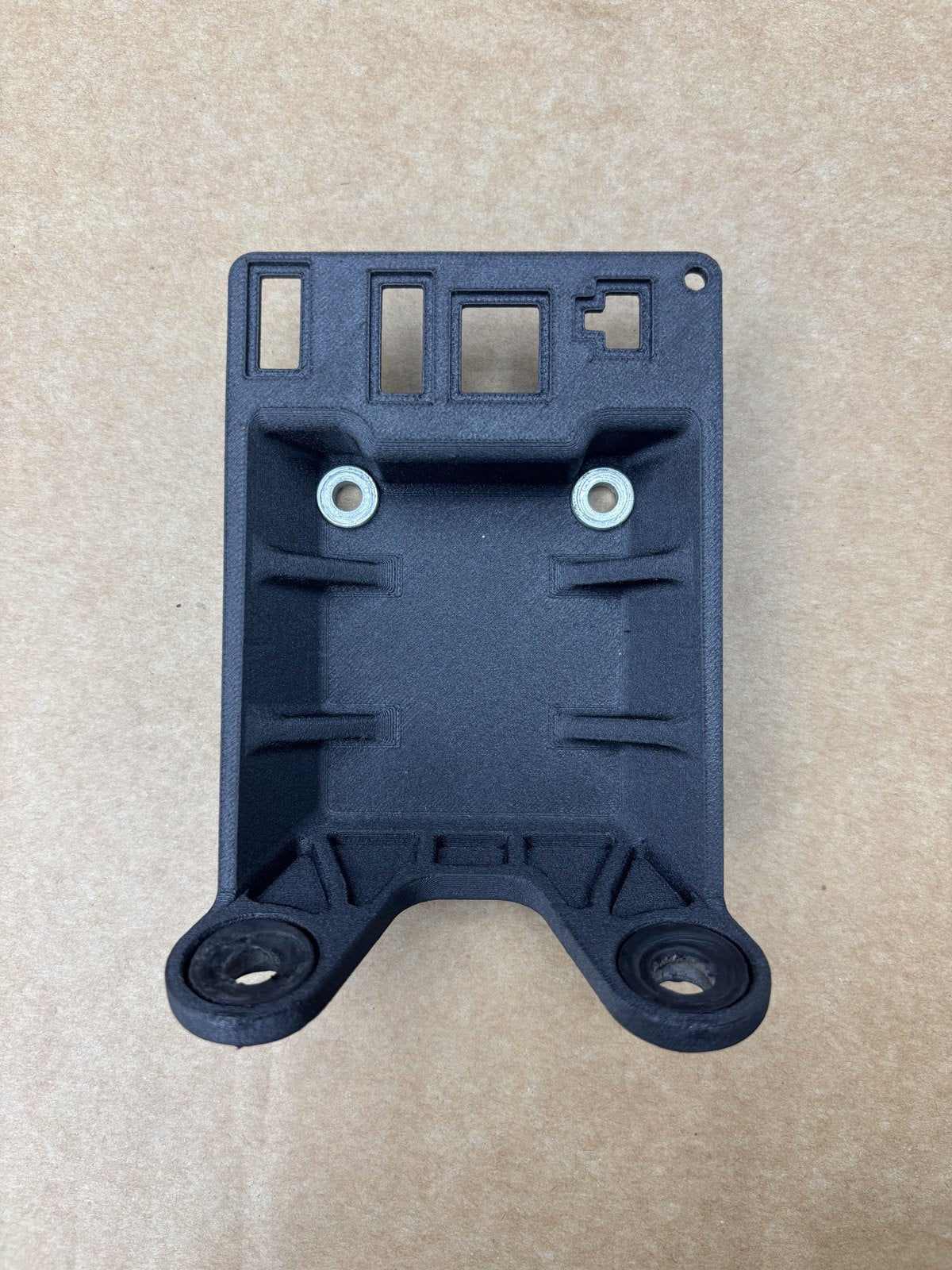

Reverse side of the black display bracket showing two inserts and four openings — The reverse side and mounting features.

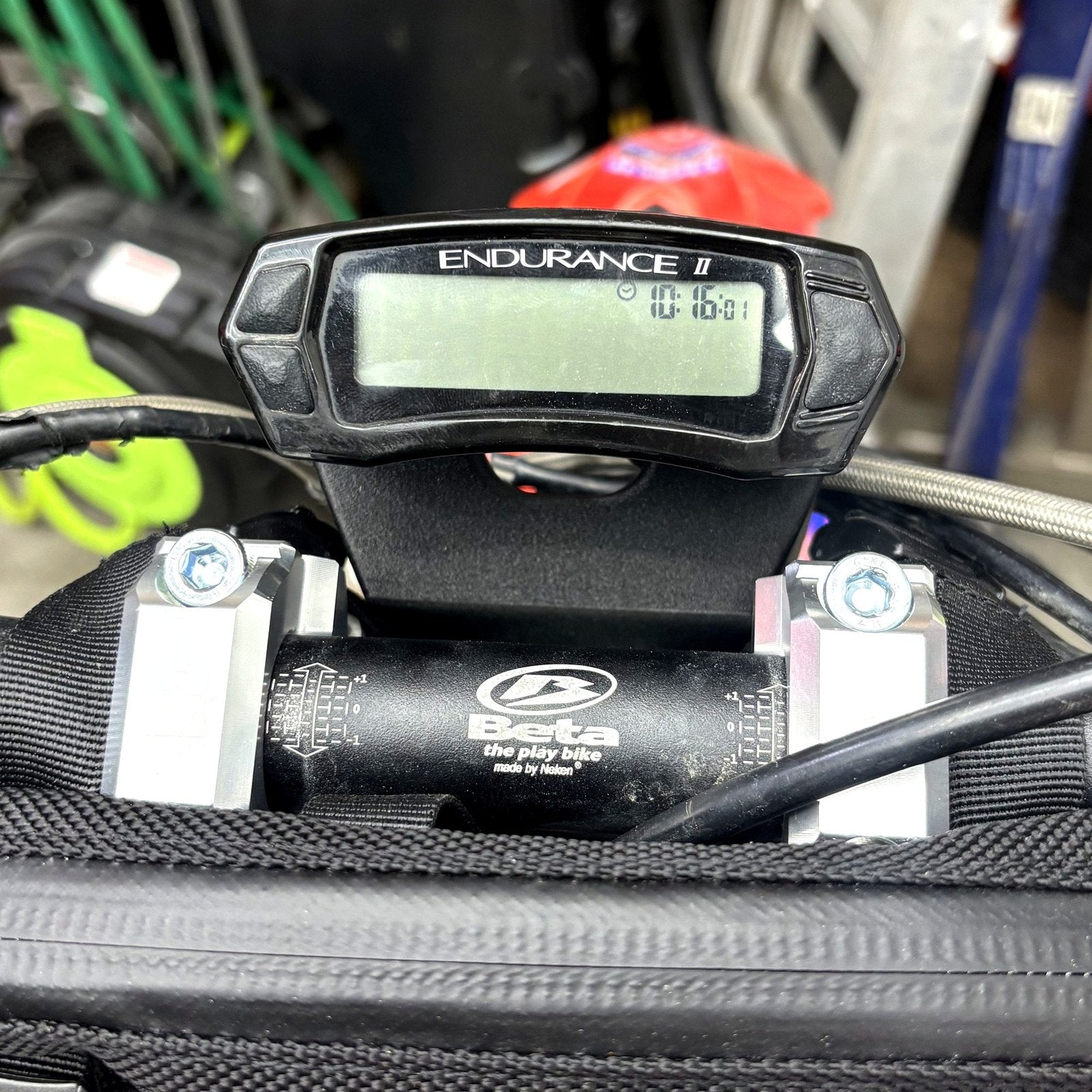

Electronic display mounted at the front of a black assembly — The display in its installed position.

For a custom mount, share the display dimensions, mounting points, and where the assembly will be used. Those details help define the bracket geometry.
