Laser Welder Nozzle Replacement

From source part to CAD quote

Using the original nozzle as a reference, I rebuilt its geometry in CAD and sent the model for a one-piece vendor quote in about two hours. This case study ends at the quote stage.

Replacement cost comparison

STEP-derived CAD rendering of the proposed replacement nozzle with an illustrative translucent finish — STEP-derived CAD modelIllustration of the proposed geometry; no replacement has been manufactured or tested.

Reverse-engineered replacement

Engineering labor$200

Vendor quote for one part, including shipping$250

Total quoted cost$450

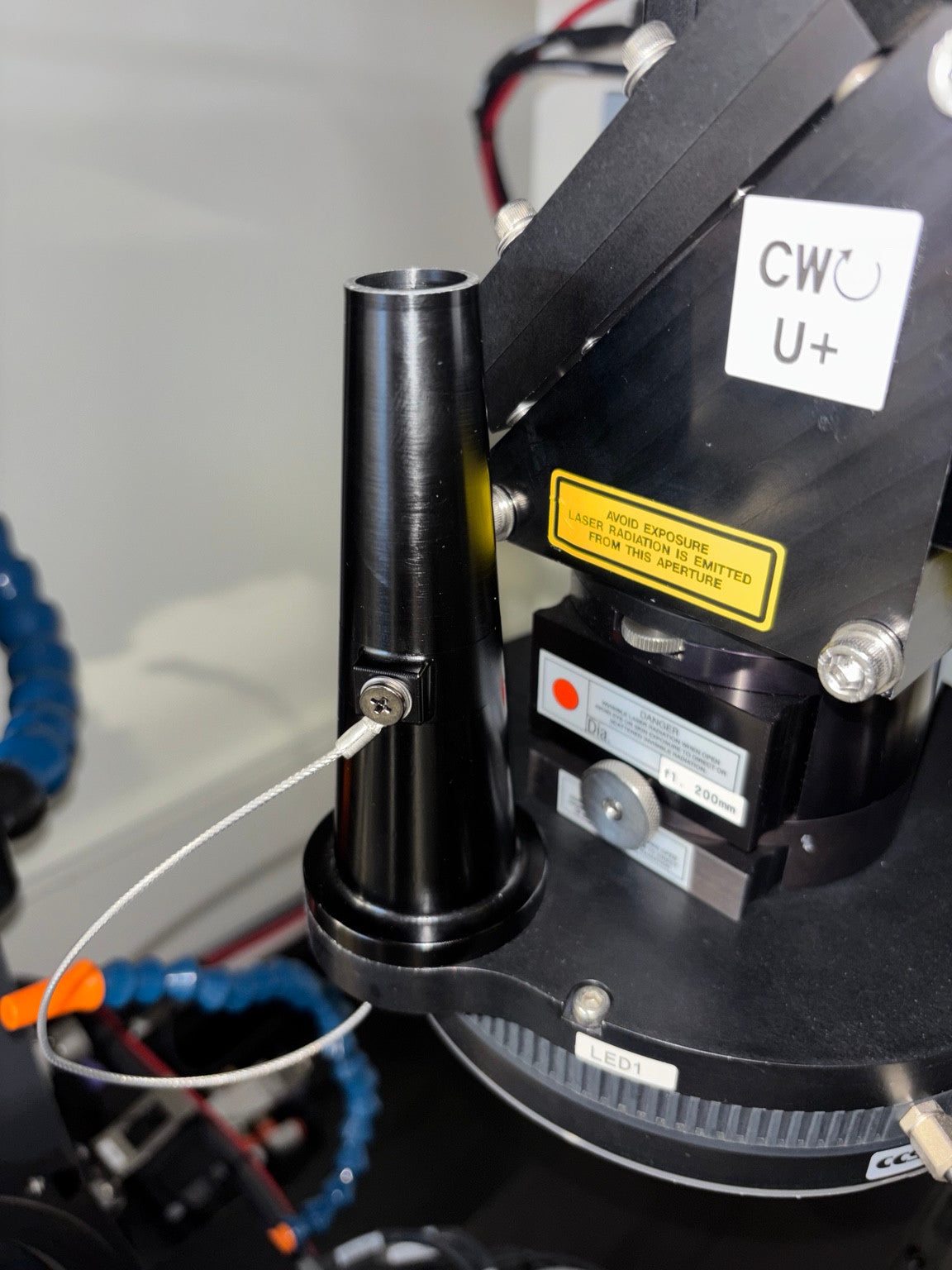

Original black nozzle mounted on the laser welding machine, with side attachment and cable visible — Original nozzle photographThe existing part on the machine; the price below is for one new OEM nozzle.

OEM replacement

Purchase one new OEM nozzle.

One-time OEM price$1,000

$550 lower quoted cost55% below the stated OEM price

This compares a CAD-and-vendor quote with the stated price for one new OEM nozzle. It does not represent a completed purchase, verified in-service savings, or equivalent performance.

Project stage

The vendor described the one-piece offer as vacuum cast and polycarbonate. The exact resin and process would need to be confirmed with the vendor before ordering. The part has not been presented here as manufactured, installed, or tested on the laser welder.

Closer views

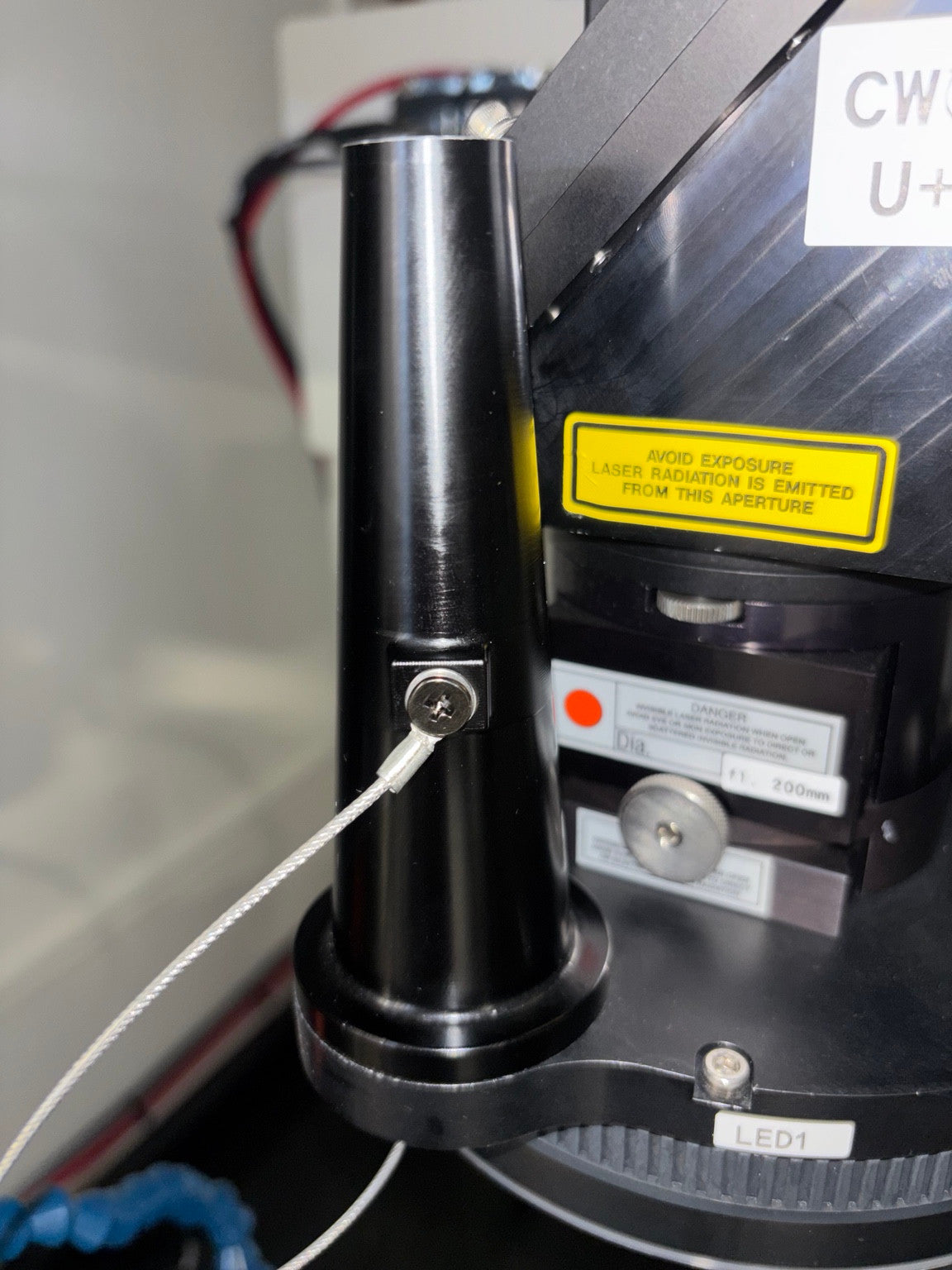

Closer photograph of the original black nozzle, its side screw and cable, and the lower mounting area — Original partAttachment and mounting areaA closer photograph of the existing assembly.

Second CAD-derived view of the proposed laser welder nozzle replacement — CAD modelSecond model viewFrom the supplied STEP model; the clear appearance is illustrative.
