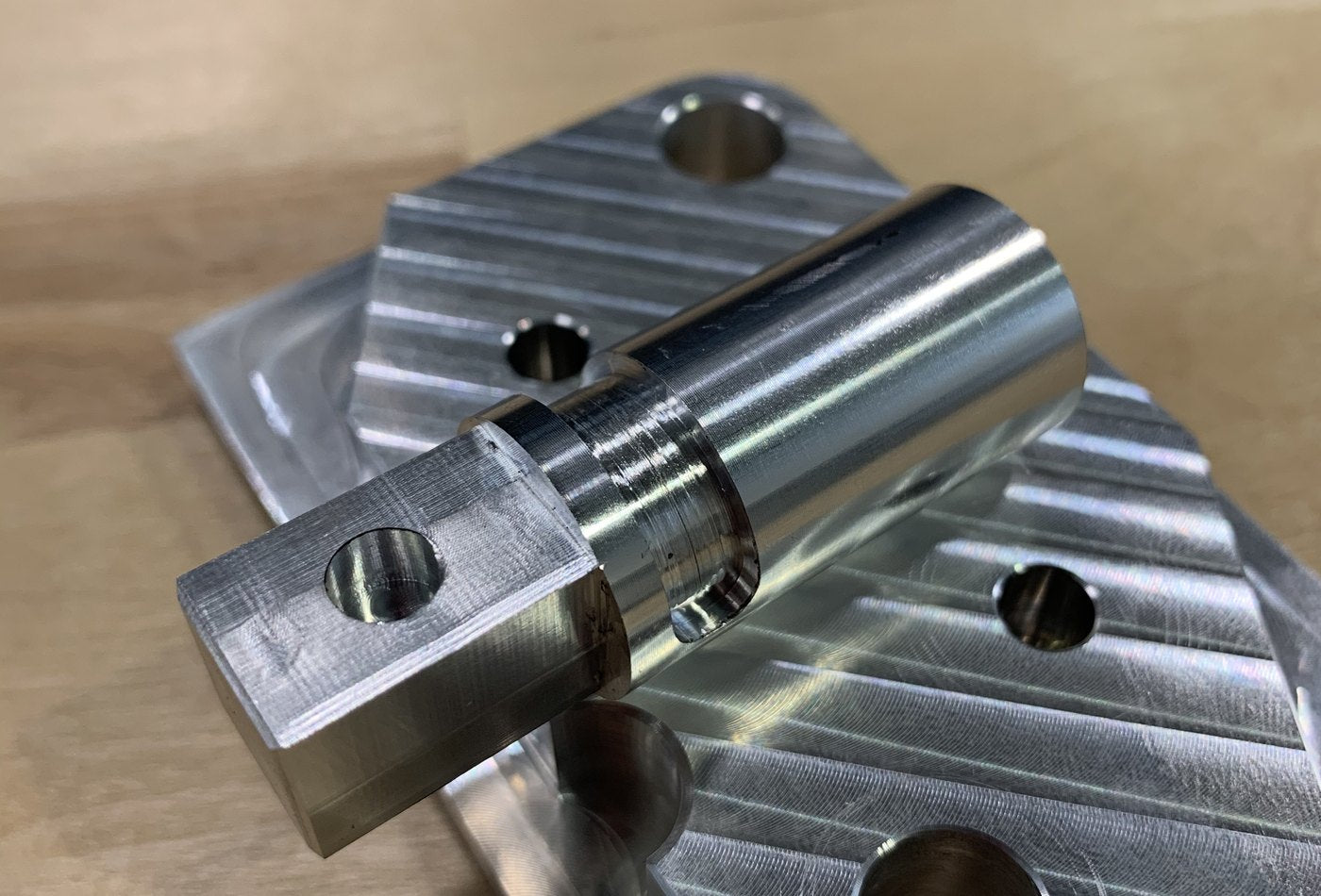

This example shows a metal part set with milled pockets, mounting bores, and a turned cylindrical feature. The close-up makes the machining and fit surfaces easy to inspect.
What the work shows
The plate has multiple machined features and visible tool paths. The separate cylindrical piece includes a stepped diameter and drilled mounting feature. Together, the photos show the range of shapes that can be produced with milling and turning.
Have a part that needs machining or a drawing reviewed for fabrication? Share the model, drawing, or a photo to start a project discussion.
