BMW used 2.5 mm round pin-and-socket contacts in many engine-harness, body-harness, diagnostic, ignition, and transmission connectors. If you are repairing a corroded C191, building a C101-to-X20 engine-swap adapter, or replacing one damaged terminal, the most important first step is not the connector nickname—it is confirming the actual contact.
Does your BMW connector look like one of these?
Start with visual recognition. These are confirmed examples of BMW connectors that use the same 2.5 mm round-contact geometry. The photos get you into the right family; the caliper check in Step 1 makes the final call.
1. Identify the contact before ordering parts
BMW has used several terminal families that can look similar in a photograph. “Round connector” does not automatically mean “2.5 mm contact,” and “C101” or “X20” does not guarantee that every version uses the same shell, terminal, or pinout. Remove or expose one original terminal and compare it carefully.
- Disconnect power. Disconnect the battery following the service procedure for your car. Never depin a live circuit.
- Photograph and label. Capture the connector orientation and cavity numbers, then label each wire before moving it.
- Measure the mating section. Place clean caliper jaws across the smooth cylindrical male pin—not the crimp barrel, insulation support, or retention feature. A reading near 2.5 mm confirms the nominal contact diameter.
- Compare the female socket by geometry. A female terminal is identified by the 2.5 mm mating pin it accepts. Compare its overall body, retention lance, open-barrel crimp, and sealing style to the reference photos.
Caliper tip: close the jaws gently. Crushing a female socket or squeezing a hollow feature will produce a bad reading and may damage a reusable terminal.
Male vs. female—and why wire size still matters
The male terminal has the solid round mating pin. The female terminal has the socket that receives it. That only determines the mating side. You must also select the terminal that fits the conductor cross-section and insulation diameter. An oversized barrel may not crimp tightly; an undersized barrel can damage strands or fail to close correctly.
| Falk MFG option | Available gender | Best practice |
|---|---|---|
| 14–20 AWG (Small) | Male or female | Measure the stripped conductor and compare the original barrel |
| 12–14 AWG (Medium) | Male or female | Use the closest barrel size that produces a proper closed crimp |
| 10–12 AWG (Large) | Male or female | Confirm housing clearance and insulation support before assembly |
2. Which BMW connectors use 2.5 mm round contacts?
The most useful answer is a list of documented and field-confirmed examples—not an “all BMWs” promise. Connector IDs and pin counts vary by chassis, build, and option package. Always let the physical measurement win.
Platform-era map (not blanket fitment)
| BMW platform | Approx. production era | Relevant 2.5 mm round-contact context |
|---|---|---|
| E30 3 Series | 1982–1994 | C101, later M20 C191, diagnostic and other engine-harness connections; early/late hardware differs |
| E34 5 Series | 1987–1996 | X20 and configuration-specific X69/engine-electronics connections |
| E36 3 Series | 1990–2000 | X20, X33, X69, X6031, selected radio and engine-harness cavities |
| Z3 (E36/7, E36/8) | 1995–2002 | Shares portions of the E36-era electrical architecture; verify every connector and cavity |
| E38 / E39 | 1994–2004 | D 2.5 mm contacts appear in engine/body wiring, but connector IDs and service access differ from E36 |
| E46 3 Series | 1997–2006 | Selected engine, oxygen-sensor, diagnostic, and body-harness applications; X6031 is documented with different hardware on some builds |
| Later BMW platforms | 2000s–current catalog | BMW continued cataloging D 2.5 mm terminals, but that does not prove this release procedure or tool access for every sealed housing |
The years above describe the chassis production era, not a terminal-fitment boundary. BMW parts catalogs and ETMs must still be checked against the specific model, engine, transmission, market, and build month.
| BMW designation | Common documented application | What to verify |
|---|---|---|
| C101 | E30 engine-harness-to-body/power-distribution interface; commonly encountered in engine-swap wiring | Early and late shells/pinouts differ; verify round 2.5 mm terminals and your exact ETM |
| C191 | Later E30 M20/Motronic injector-and-sensor sub-harness disconnect under the intake manifold | Not fitted to every E30 harness; moisture and corrosion are common service concerns |
| X20 | Common 25-position round engine/body interface in E34 and E36 wiring; frequently used on E30 24-valve swap adapters | Donor chassis, engine, transmission, build date, and cavity-specific wire gauge |
| X69 | Configuration-dependent E34/E36 engine, transmission, DDE/EML, or SMG interconnect circuits | BMW reused this identifier; the role and pin count are not universal |
| X6031 | E36 ETMs show a 12-position black connector at the rear-left engine compartment; later BMW documentation also uses X6031 for other pin counts/functions | Never order by “X6031” alone—compare the terminal and the exact ETM |
| X33 | E36 12-position black connector in the left footwell below the steering column, used around ignition-switch/power-distribution circuits | Check the cavity: different current loads can mean different wire/contact sizes |
| X322 / X400 | Customer-confirmed 12-position audio/telephone-harness junctions on E38/E39-era installations using the same round-contact geometry | BMW reused both identifiers for different shells, colors, pin counts, and locations; match the photographed 12-position style and measure the contact |
3. How to unlock and depin the connector
The terminal is normally retained by a locking lance, and many BMW housings add a secondary lock. The C101 is a good example: its concentric plastic sections rotate between locked and service positions. Trying to overpower a locked housing can bend the terminal, tear the wire, or damage the connector.
Use the C101 locked/unlocked photo in the opening gallery as a reference: study the housing and move the secondary lock to its service position before inserting the release tool.
- Disconnect the battery, separate the connector, and record cavity numbers and wire colors.
- Release or rotate the secondary lock. Do not force the terminal through a locked housing.
- Push the wire slightly toward the connector face to unload the retention lance.
- Insert the correctly sized release tube straight over the round contact from the mating face.
- Keep light pressure on the tool while withdrawing the wire from the rear. The Depin Pro’s spring-loaded plunger can help eject the released contact; the Depin Mini uses a manual pull from the rear.
- If it does not move with light force, stop. Recheck the secondary lock, tool depth, and whether the terminal is corroded or deformed.
For the full photo walkthrough—including the C101 locking action—read How to Depin and Disassemble BMW Connectors: E30, E36, E46. You can also watch the E30/C101 video or the E36/X6031 video.
4. Select, crimp, and reinstall the replacement contact
- Match gender and size. Use a male pin where the original was male and a female socket where it was female. Match the wire-size range to the actual conductor and original terminal.
- Preserve seals and boots. Slide any required seal, boot, or strain-relief piece onto the wire before crimping.
- Strip only what the barrel needs. Bare copper belongs under the conductor wings; insulation belongs under the support wings. Do not leave long exposed strands.
- Use an open-barrel/F-crimp tool. The conductor wings should fold evenly into the strands, and the rear wings should support the insulation without cutting it.
- Inspect and pull-test. Compare the finished crimp to an undamaged original. A light pull should not move the wire.
- Reinsert and relock. Orient the contact correctly, push until it clicks, lightly back-pull to confirm retention, then close the secondary lock.
- Test the circuit. Check continuity and, for current-carrying circuits, voltage drop under load before final reassembly.
5. Which Falk MFG option do I need?
Already have good terminals?
Choose the Depin Mini for occasional manual removal or the Depin Pro for a spring-loaded plunger that speeds up repeated work.
Shop the 2.5 mm Depin Tool →
Need replacement terminals?
Five-packs are available in male or female and in small, medium, and large wire-size ranges.
Shop BMW-Style 2.5 mm Pins →
Have pins but need the right crimp?
This crimper is confirmed with the Falk MFG 2.5 mm terminal range and 20–10 AWG wire options.
Shop the 2.5 mm Crimp Tool →
Starting from scratch?

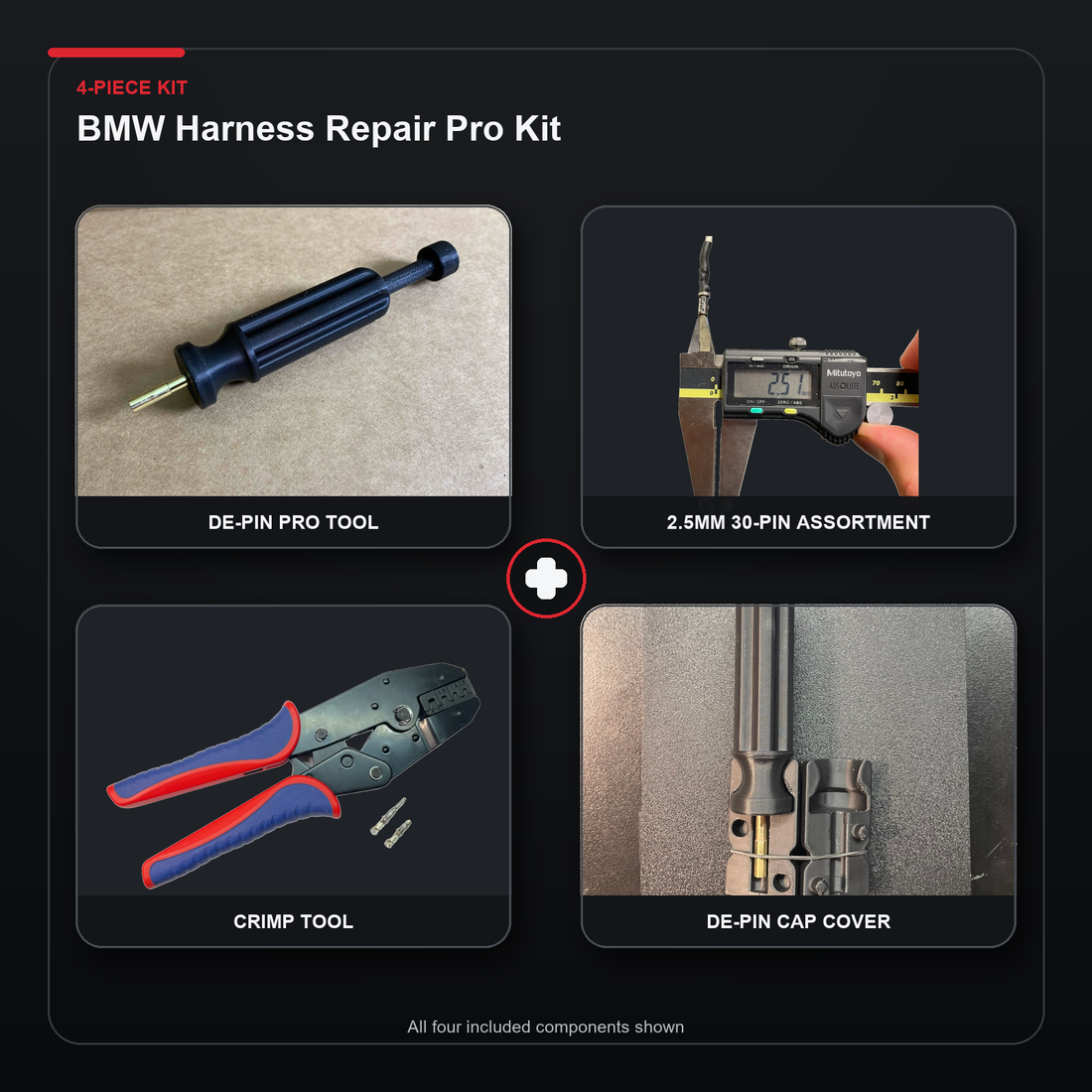

The Pro Kit combines the Depin Pro, protective tip cap, crimper, and 30 terminals: five of every male/female wire-size option.
Shop the BMW Harness Repair Pro Kit →Frequently asked questions
Does “2.5 mm” mean the wire diameter?
No. In this connector family, 2.5 mm is the nominal mating-pin diameter. The terminal’s crimp barrel is separately sized for the conductor and insulation.
Can I identify the terminal only by the connector name?
No. BMW ETM labels identify circuits and connector locations, and the same label can represent different hardware on different vehicles. Measure the pin and compare the contact geometry.
Are all C101 or X20 pinouts the same?
No. Pin assignments vary by model, engine, transmission, production date, and market. Use the Electrical Troubleshooting Manual for both the chassis and donor harness before building an adapter.
Why will the terminal not come out?
The most common causes are a secondary lock that is still engaged, tension on the locking lance, incomplete tool insertion, corrosion, or a deformed contact. Stop before force damages the housing.
