A cracked airflow meter (AFM) plug, loose terminals or wires broken at the back of the connector deserve a proper harness repair. If the terminals are corroded or damaged and the housing is brittle or permanently locked, replacing the housing and crimping fresh terminals onto sound wire is a better repair than forcing the old pins out or squeezing damaged contacts.
This guide covers the harness-side connector repair approach for an E30 AFM, including E30 M3 projects. It does not provide a universal pinout or confirm that one connector fits every E30. Match your original plug before ordering and preserve the wiring for your exact car.
Inspect the connector before replacing the AFM
Unplug the connector with the ignition off and inspect both halves. Look for broken insulation, green or white deposits, damaged or recessed contacts, loose wires and a cracked housing or retaining clip. Cleaning can help with surface contamination, but it cannot restore missing contact material, broken wire strands or a failed terminal crimp. Check the AFM's mating pins as well; a new harness plug cannot repair a damaged socket on the meter.
Rough running or hesitation alone does not prove that the connector or the AFM is faulty. Diagnose the circuit using the correct BMW service information before replacing components.
Why some original Bosch-style plugs will not depin

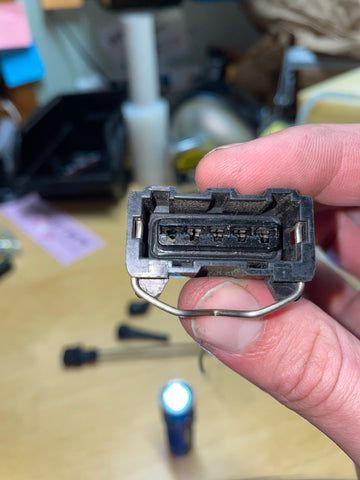

Some factory housings are heat-staked: plastic is pressed into the terminal cavity to hold the contact in place permanently. A release tool can disengage a terminal's locking lance, but it cannot remove that plastic obstruction. If a terminal will not release with the correct procedure and light effort, stop and inspect the housing. Pulling harder can break a short wire even closer to the harness.
See the close-up examples in our BMW Bosch 2-, 3-, 4- and 5-pin depinning guide. When the original housing is permanently locked or damaged, plan to replace the housing and terminals.
Choose the replacement before cutting any wires
Compare the mating face, cavity count, keying, latch, terminal dimensions and rear wire entry. Count the housing positions separately from the populated wires. An unused position is not an instruction to add a wire, and the number of positions alone does not establish compatibility.
Our 5 Pin BOSCH Style Female Connector Kit is available for repairs where its connector geometry matches the original. Each kit contains one female housing with retaining clip, five female crimp terminals and five individual wire seals. It is supplied unassembled, without wire, a rear rubber boot or a mating male connector. Confirm the supplied terminals and seals suit your wire size and insulation diameter before assembly.
If you are unsure about your E30 M3 AFM plug, email info@falkmfg.com with the year, model, AFM part number and clear photos of the mating face and wire entry so we can help compare it.
How to rebuild the AFM harness connector
- Document the original wiring. Photograph the mating face and wire side before disturbing anything. Record the molded cavity numbers and each wire's location. These two views are mirrored, so do not copy positions by eye from the opposite side. Check the year- and engine-specific BMW wiring diagram, especially if the harness was previously repaired.
- Isolate power. Follow the vehicle's battery-disconnection procedure before cutting, stripping or crimping wires. Do not work on an energized circuit.
- Plan for sound wire and enough length. Work one labeled circuit at a time. If the old housing cannot be depinned, cut close to the old connector to preserve usable length, then remove any damaged or corroded conductor until sound wire remains. If that leaves the harness too short, use an appropriate automotive harness repair or replacement lead; do not stretch the loom to reach.
- Fit the seal and prepare the conductor. Slide the correct wire seal onto the wire before crimping. Strip to the terminal manufacturer's specified length without nicking strands. Do not guess a universal strip length or fold strands back to fit an oversized barrel.
- Crimp a fresh terminal. Use the specified tooling for the terminal, wire size and seal. Form the conductor crimp and rear support/seal crimp as intended for that terminal. Inspect for cut strands, loose wire, damaged seals or a distorted contact. Practice on spare matching parts if needed; an ordinary pair of pliers is not a terminal crimper.
- Populate the new housing. Insert each terminal into its recorded cavity in the correct orientation until its retention feature engages. Gently check retention without pulling hard on the wire. Complete any secondary lock required by the housing. Follow the connector manufacturer's sealing method for unused cavities.
- Check before reconnecting. With the affected electronics disconnected as required by BMW's test procedure, verify wire routing and continuity and check for unintended shorts. Do not apply battery voltage or a test light to AFM signal circuits, or probe in a way that spreads the contacts. Restore the boot or specified protection and strain relief, reconnect the plug and clip, and secure the loom away from heat, abrasion and tension.
Use the vehicle's prescribed checks after the repair. A repaired connector addresses a confirmed connection defect; it does not guarantee that unrelated engine-running problems will disappear.
Tools and parts for the job
- 5-pin Bosch-style female connector kit: a fresh housing, five female terminals and five wire seals for a matching application.
- Bosch Style Connector De-pin Tool: useful for releasing serviceable Bosch-style terminals, including future work on a compatible replacement housing. It does not overcome a permanently heat-staked factory lock.
- A terminal crimper specified for your open-barrel contacts and seals, wire stripper, labels and suitable electrical test equipment.
Working on another connector? We also offer 2-pin, 3-pin and 4-pin female connector kits. Choose by the actual connector, not the vehicle badge alone.
Further reading
For terminal preparation and tooling principles, see TE Connectivity's guide to crimping terminals. For wire assignments and electrical tests, use the BMW Electrical Troubleshooting Manual for your specific model year and engine. The photographs here are from Falk MFG's existing connector guide and product gallery.
