5 Pin BOSCH Style Female Connector Kit
5 Pin BOSCH Style Female Connector Kit
Couldn't load pickup availability
5-pin Bosch-style female connector kit for BMW air flow meter (AFM) harness repair and custom engine wiring. Period BMW E30, E28 and E24 wiring manuals show the rectangular five-position AFM connector format. Compare your original housing with the photos and application references below before ordering. Each unwired kit includes the housing, female crimp terminals and individual wire seals.
Female connector only. No rubber boot or mating male connector is included.
What's included

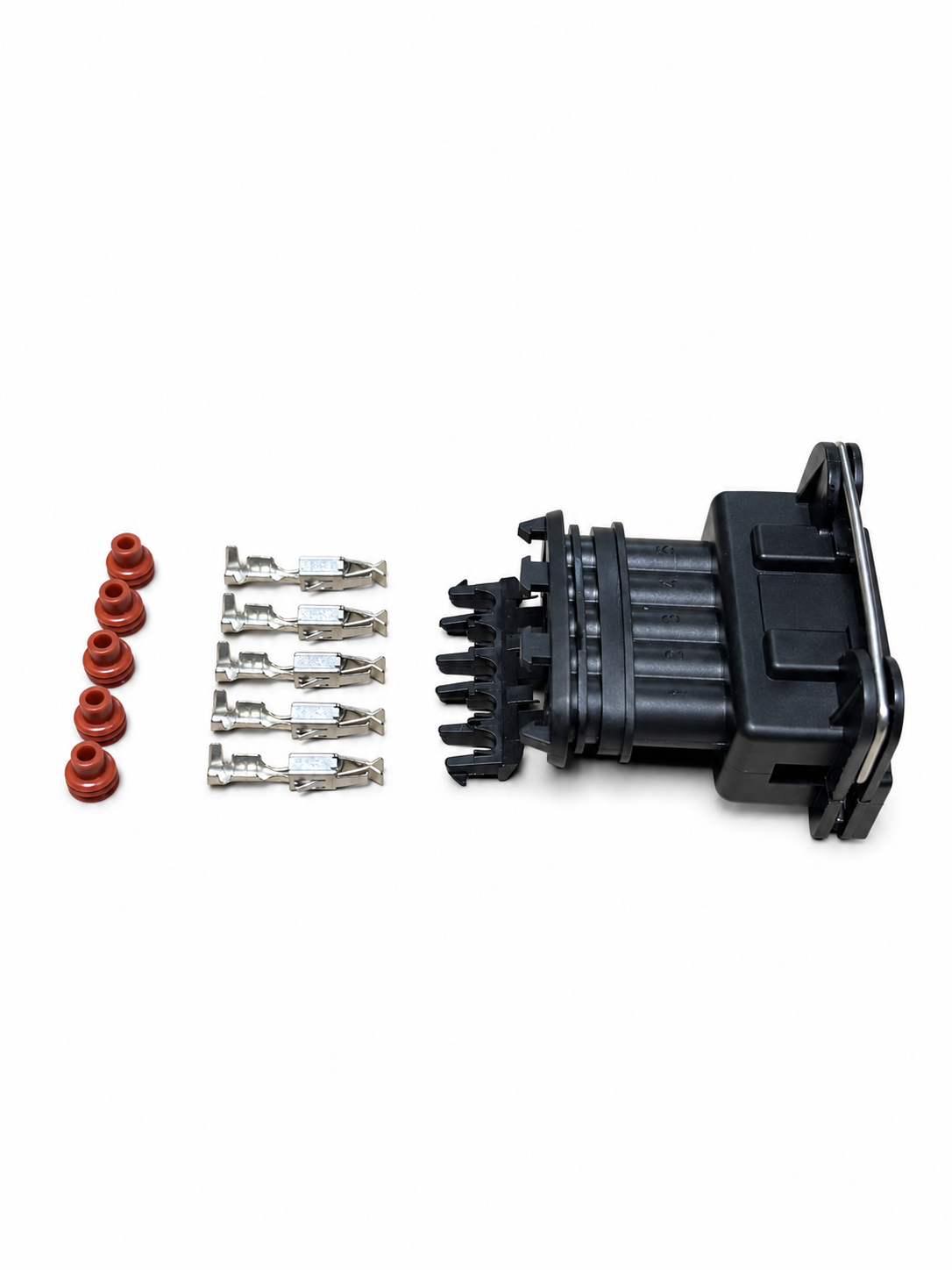

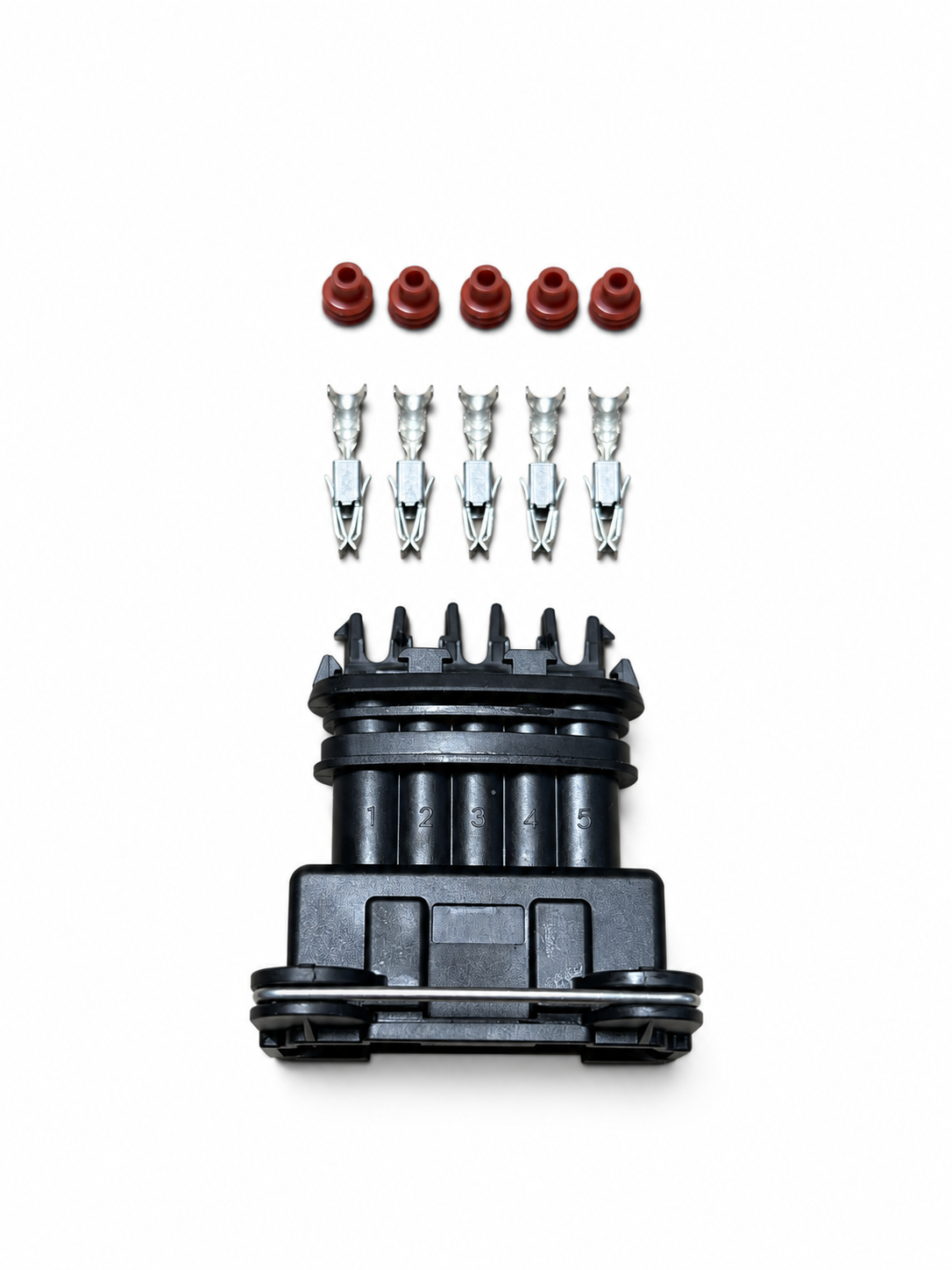

- Each connector kit: 1 female 5-pin housing with retaining clip, 5 female crimp terminals and 5 individual wire seals.
- 1-pack: 1 housing, 5 terminals and 5 seals.
- 3-pack: 3 housings, 15 terminals and 15 seals.
- 5-pack: 5 housings, 25 terminals and 25 seals.
Supplied unassembled and without wire. Individual wire seals are included; a rear rubber boot is not.
BMW compatibility chart: models, years and connector checksClick to expandClick to collapse+
Use these BMW air-flow-meter connector references to identify the five-position Bosch-style housing. Engine, market and previous harness changes can affect the plug fitted to a particular car.
| BMW model / application | Reference year(s) | Connector selection |
|---|---|---|
| E30 325 / 325e / 325i family | 1987; 325i reference also 1989 | BMW AFM drawings show a rectangular five-position housing. Compare the mating face, keying and spring clip with this kit. |
| E30 M3 (S14) | 1987 reference | BMW's AFM connector drawing shows five positions. Check the original housing before choosing this kit. |
| E28 535i / M5 manual applications | 1988 reference | The AFM wiring-face drawing shows five positions. Match your specific AFM and harness plug. |
| E24 635CSi | 1989 reference | The AFM housing drawing has five positions, with four numbered wire connections shown. Count housing positions, not only wires. |
| E36 / E46 engine swaps or custom wiring | Project-dependent | Select by the installed component. Factory fitment for these chassis has not been established for this housing. |
Count all five housing positions. A five-position plug may have fewer populated wires. Use your vehicle's wiring diagram to preserve terminal positions; this kit supplies five terminals and seals.
BMW application references: 1987 E30 ETM, 8500-3; 1989 E30 ETM, 8500-2; 1987 E30 M3 ETM, 8500-2; 1988 E28 ETM, 8500-3; 1989 E24 ETM, 8500-2. Years identify the manuals reviewed, not a continuous fitment range. These references establish the connector format used in those examples; verify the dimensions and keying of your original plug.
Check your connector before ordering

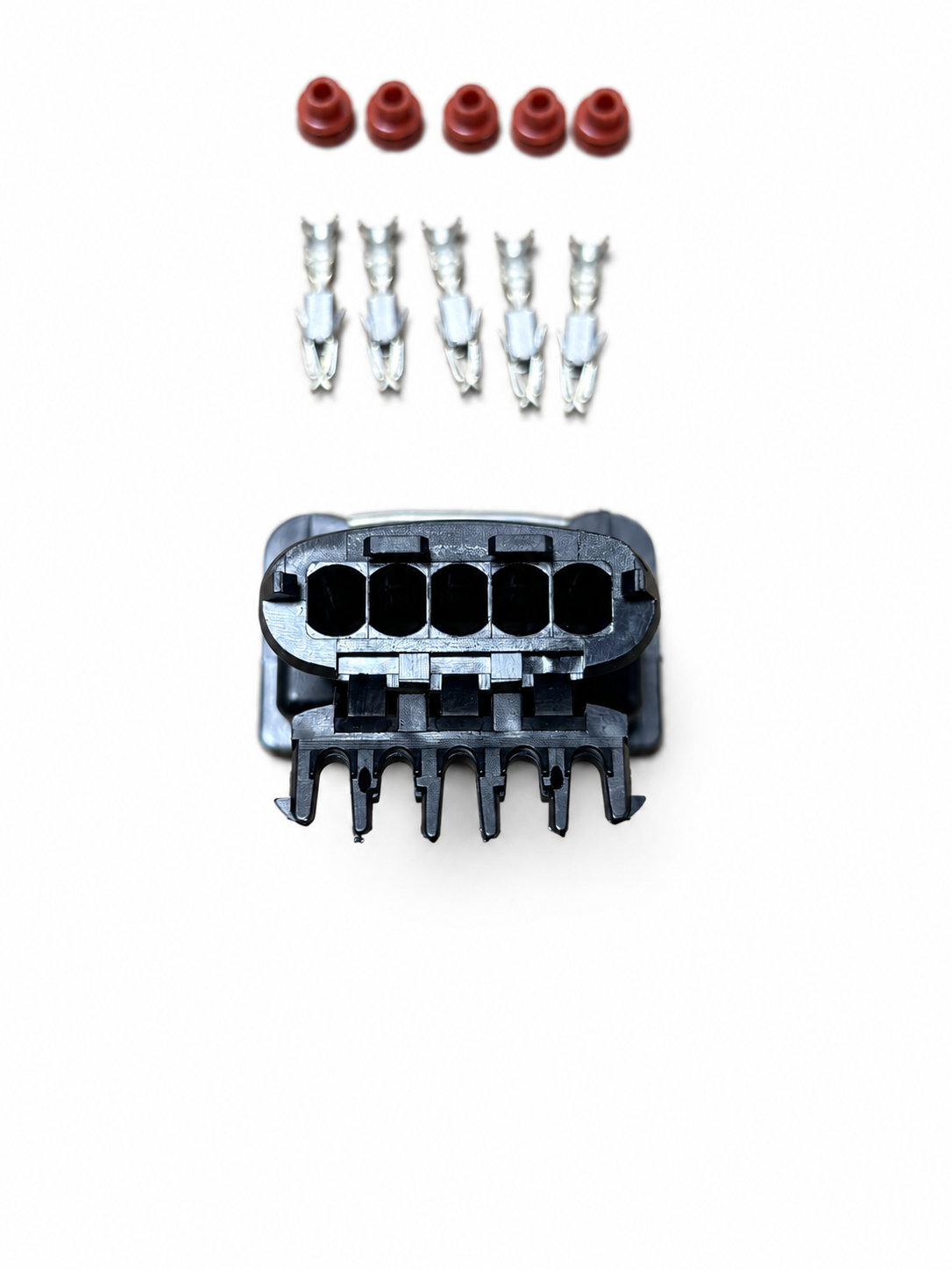

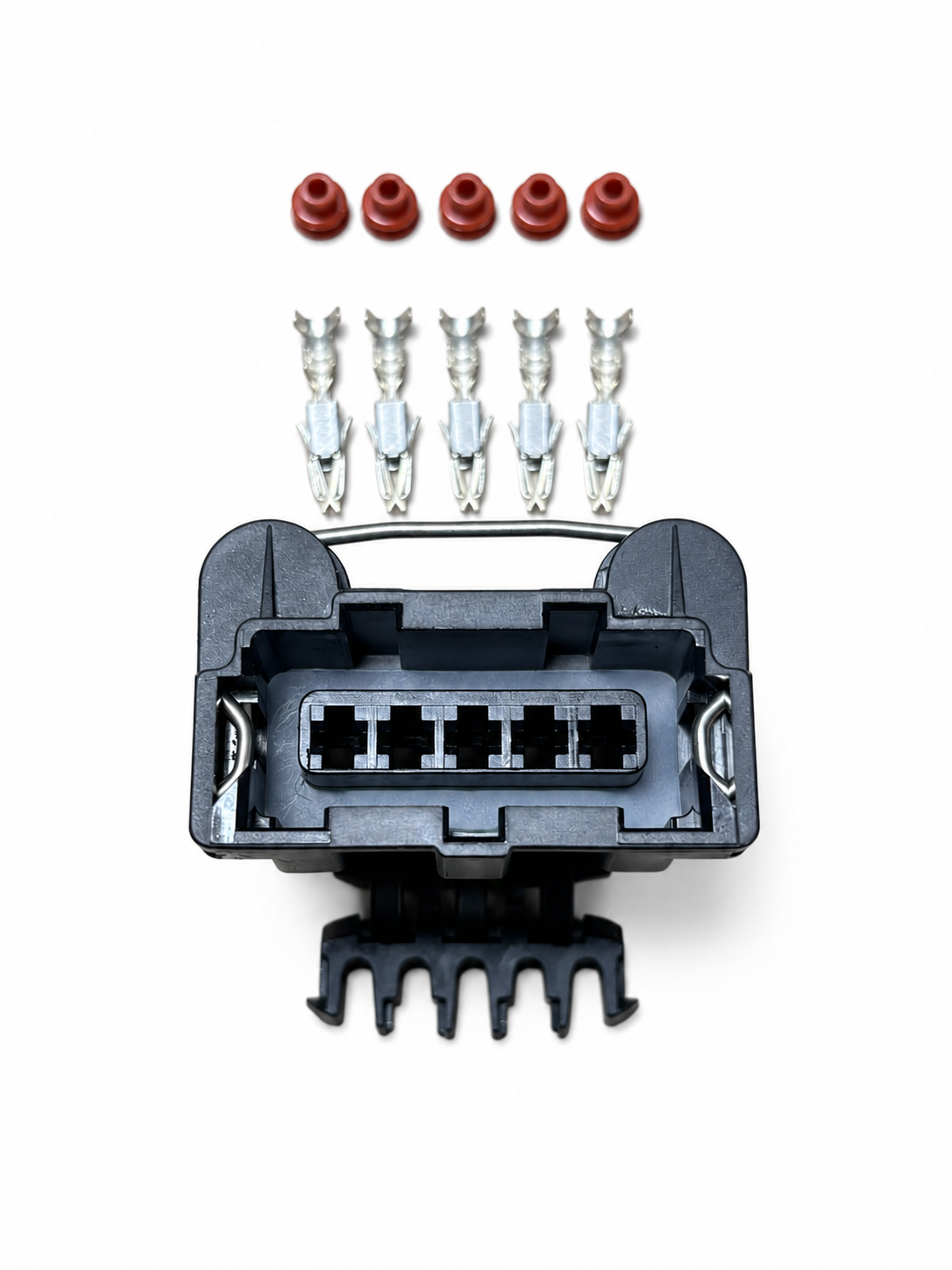

Compare the mating face, pin count, keying, latch and rear wire entry in our photos with your original connector. Pin count alone does not confirm fitment. Match the housing width, keying and retaining clip as well as the number of positions.
BMW wiring repair and harness projects
Restoring an E30 engine harness, repairing an E28 or E24 AFM plug, or planning a custom sensor connection? For connector extensions and application-specific wiring, see our custom BMW wire harness service.
Crimping and terminal removal
Use an automotive open-barrel crimping tool suited to the supplied terminals and wire seals. Preserve your original pin positions when rebuilding the connection. The final gallery image shows a properly crimped terminal and seal as an assembly reference.
Need to remove terminals? See our Bosch Style Connector De-pin Tool and 2-, 3-, 4- and 5-pin connector depinning guide. Some factory connectors are permanently locked and must be replaced rather than depinned.
Other connector sizes
Also available: 2-pin Bosch-style connectors, 3-pin Bosch-style connectors and 4-pin female connector kits.
