BMW Harness Repair Pro Kit - De-pin Tool, Crimper & 30-Pin Assortment

The BMW Harness Repair Pro Kit gives you the core tools and pins needed for common BMW engine harness and connector repair work. Instead of buying the de-pin tool, crimper, and pin assortment separately, this kit puts the main pieces together in one easy setup.

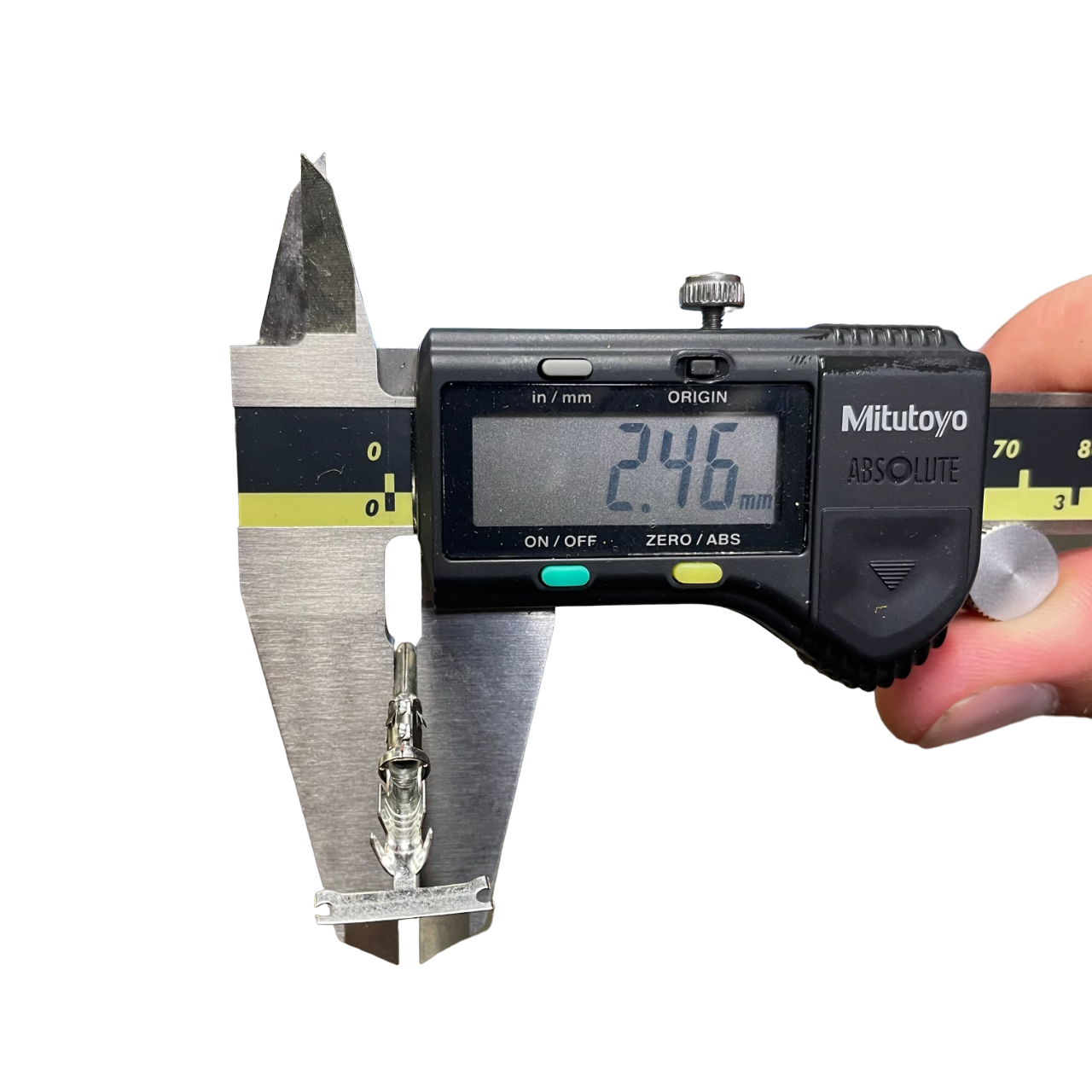

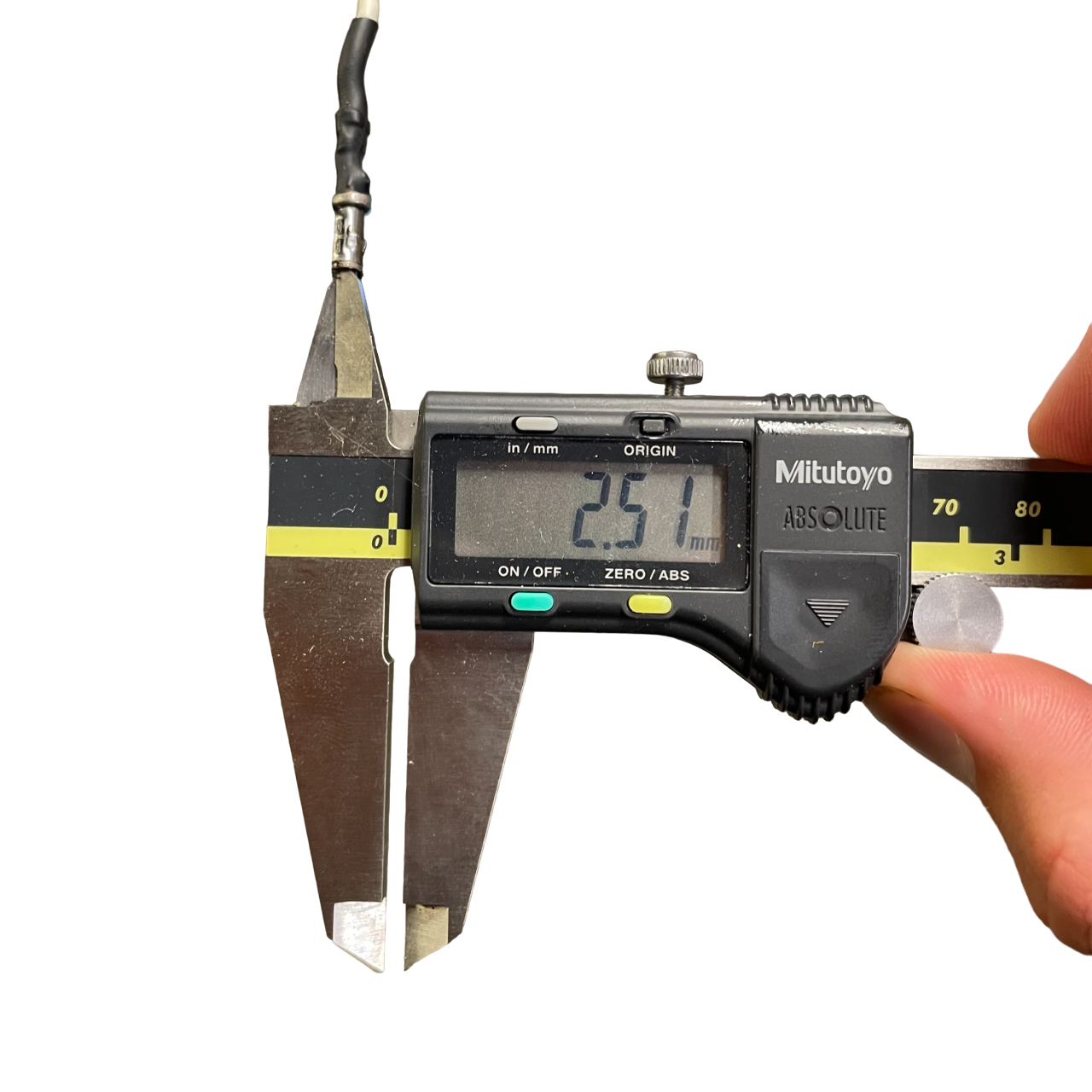

This kit is built around BMW-style 2.5mm round pins commonly used in connectors including C101, C191, X20, X69, X6031, and X33. BMW used this style of pin across many models and years, so compare your original pins to the product photos before ordering.

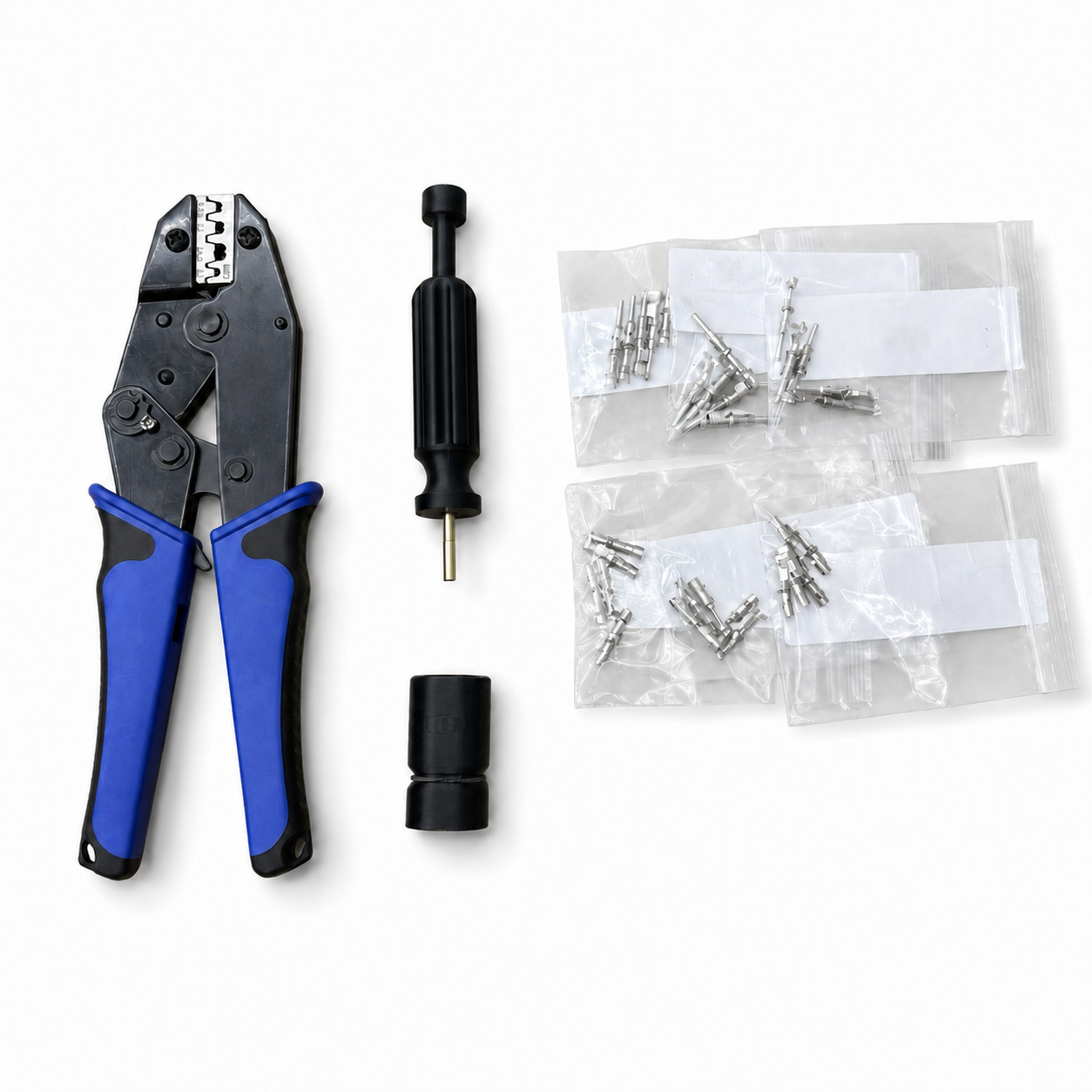

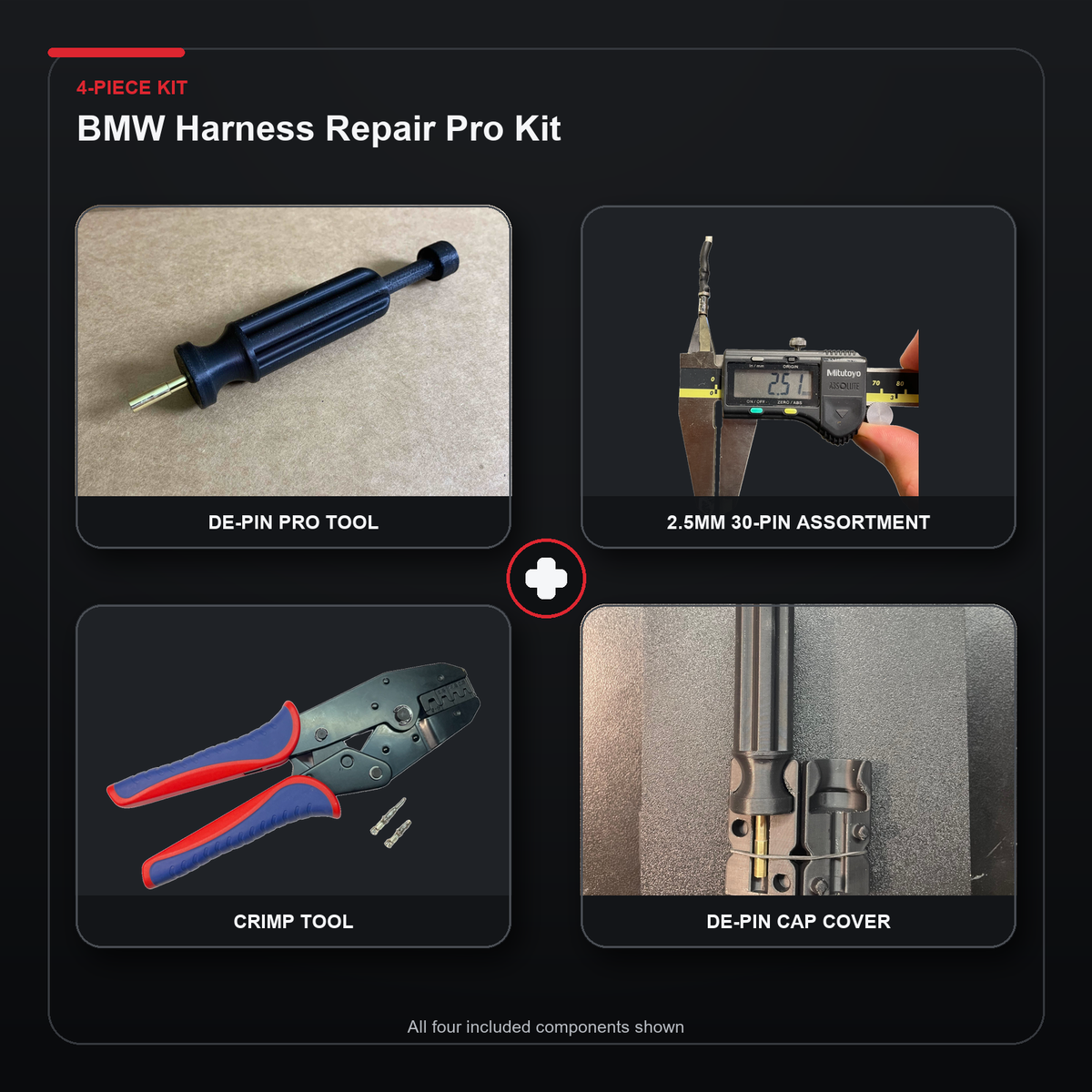

Included

• 1 BMW-style de-pin pro tool
• 1 de-pin tool tip cap/cover for storage
• 1 crimp tool for BMW-style 2.5mm pins

• 30 total 2.5mm pins

30-Pin Assortment

The included pin assortment gives you 5 of each common pin option listed below:

• 5 male pins, 14-20 AWG
• 5 male pins, 12-14 AWG
• 5 male pins, 10-12 AWG
• 5 female pins, 14-20 AWG
• 5 female pins, 12-14 AWG
• 5 female pins, 10-12 AWG

Common Connector Compatibility

• C101
• C191
• X20
• X69
• X6031
• X33

This kit is especially useful for E30, E36, E46-era BMW wiring work, engine swaps, harness repairs, and connector service. Compatibility depends on the connector and pin style in your specific harness, so always verify pin dimensions before crimping or installing.

Need More Of One Specific Pin?

This kit includes a mixed assortment. If you already know the exact pin size and gender you need, or if you need extras of one type, order individual 5-packs here:

C101 X20 2.5mm Pins for BMW Style Connectors

Notes

• Designed for BMW-style 2.5mm connector pins
• Includes both male and female pins
• Includes three common wire-size ranges
• Not every BMW connector uses this pin style
• Measure and compare your original pins before ordering
