E46 Ashtray Voltmeter + Quick Charge USB-C Port

E46 Ashtray Voltmeter + Quick Charge USB-C Port

$74.99 USD
$74.99 USD
Sale Sold out
Shipping calculated at checkout.
Style
LHD or RHD

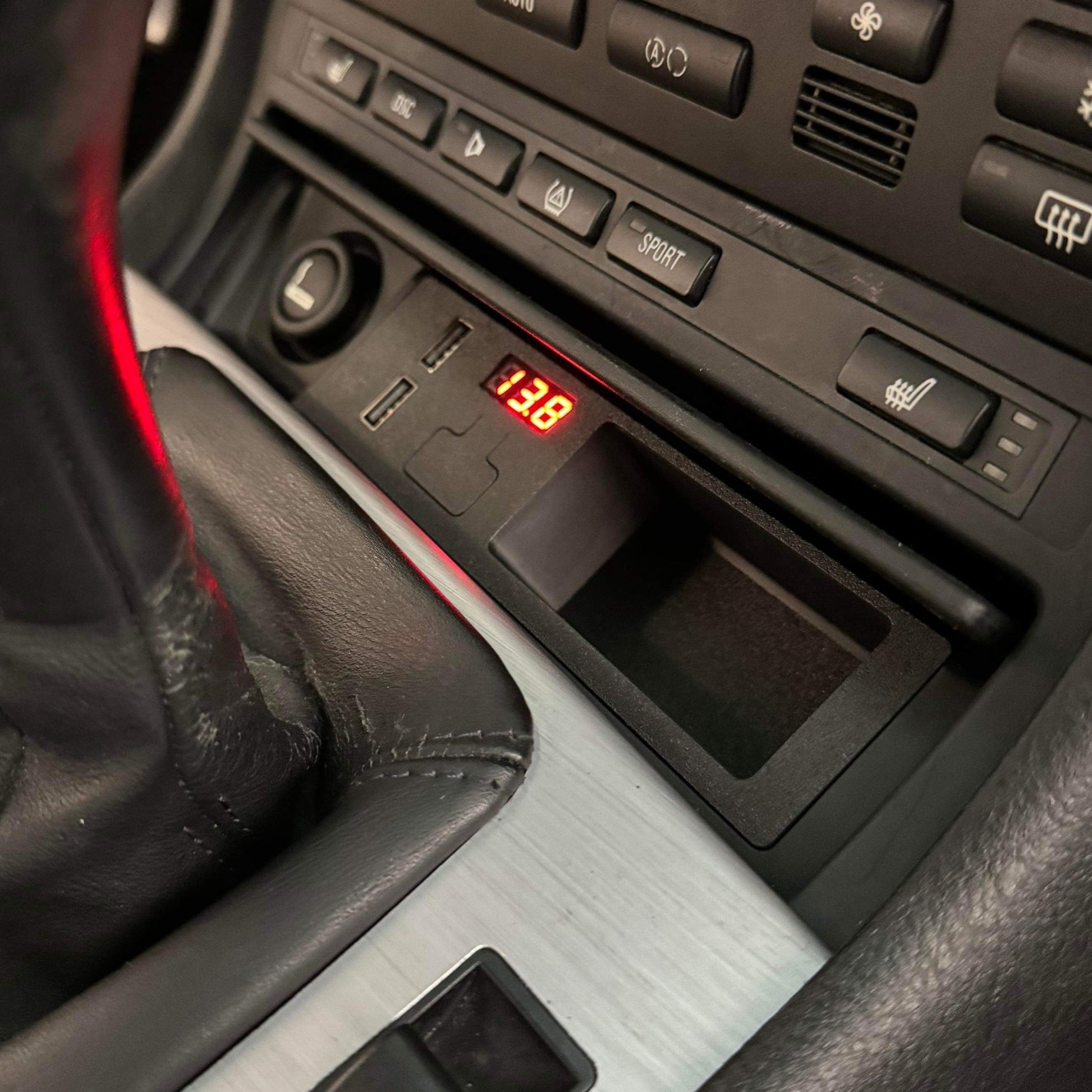

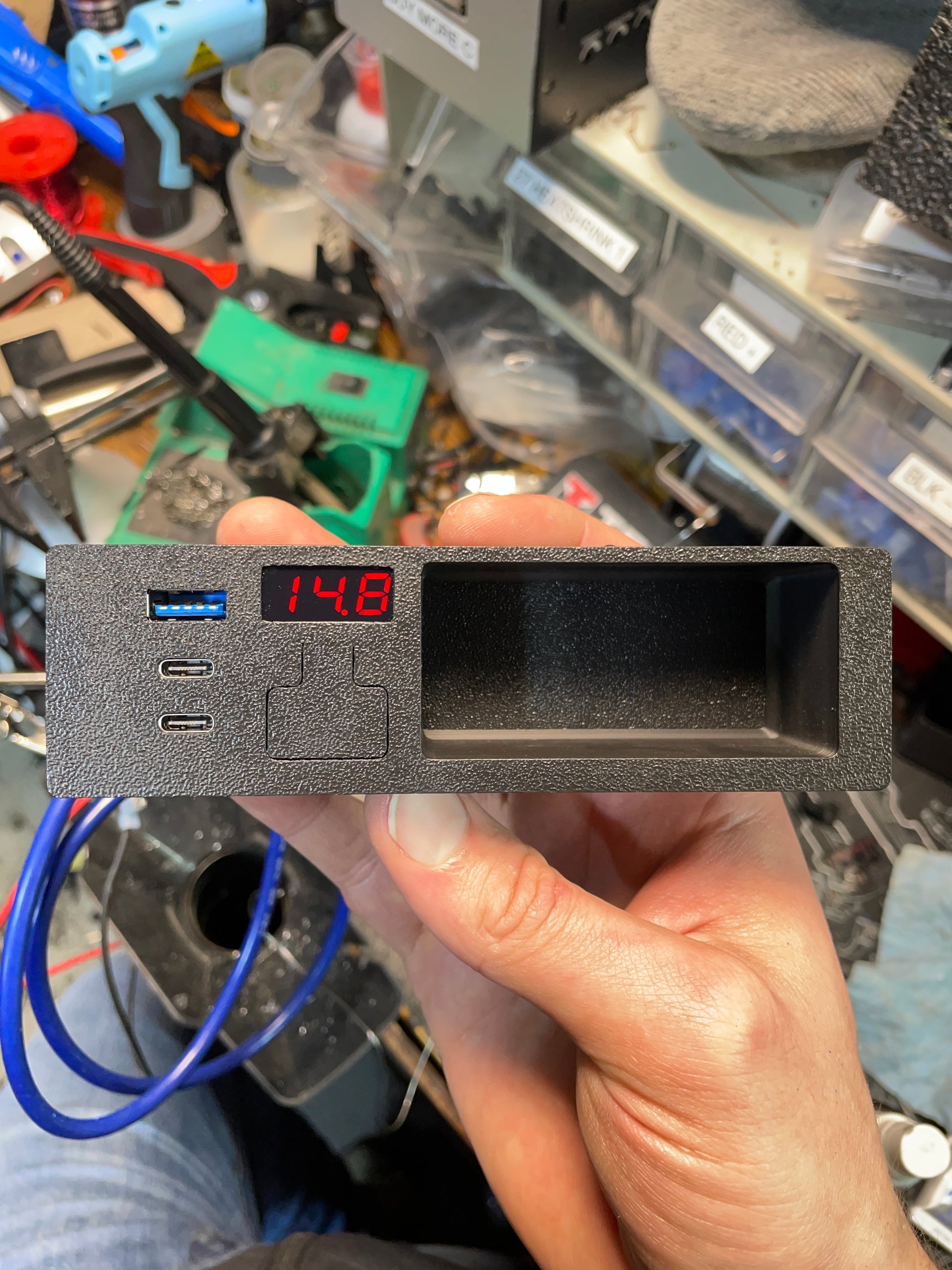

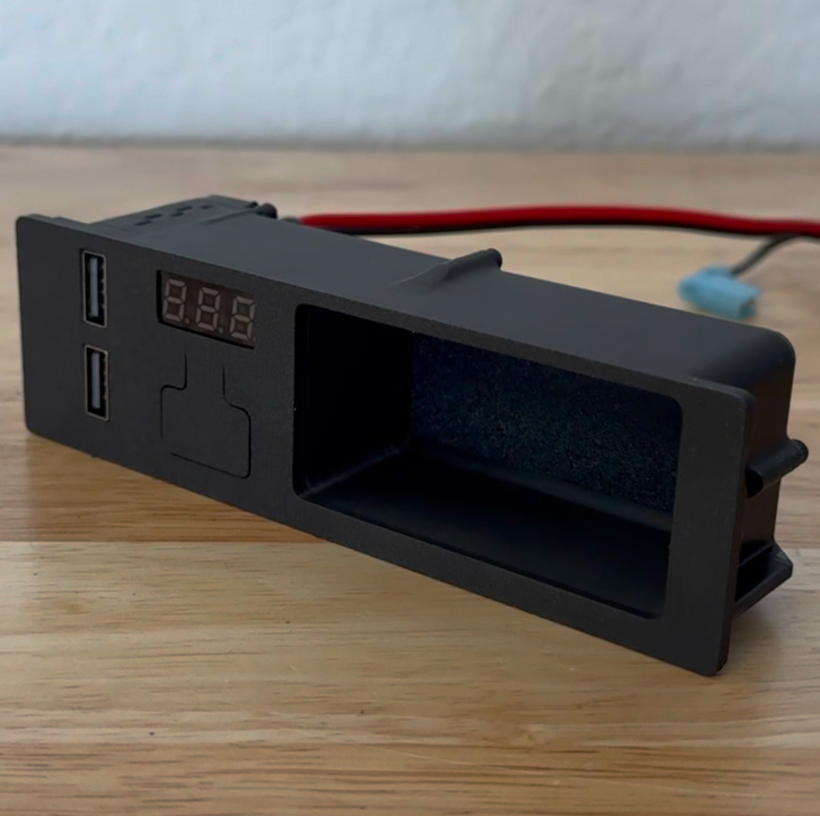

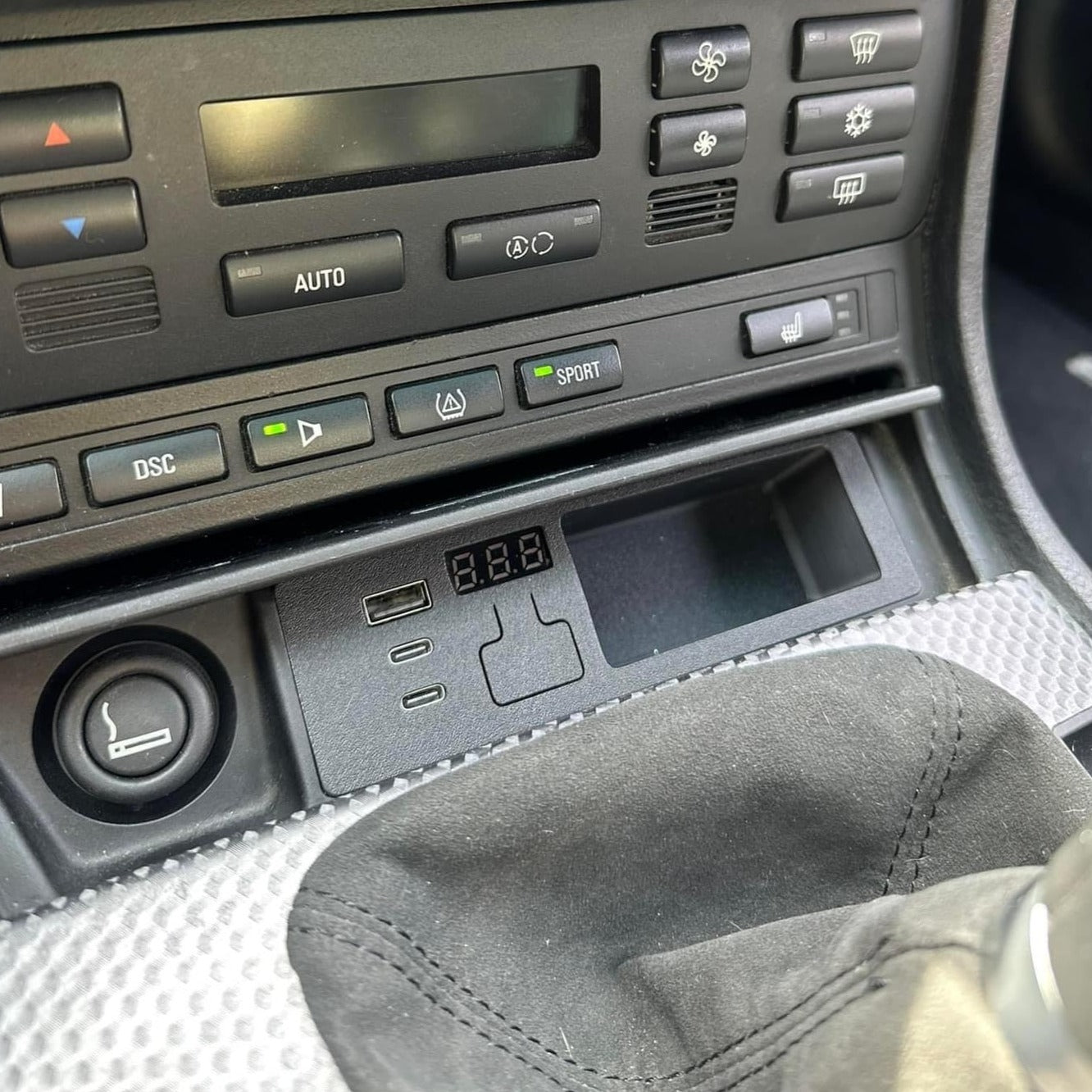

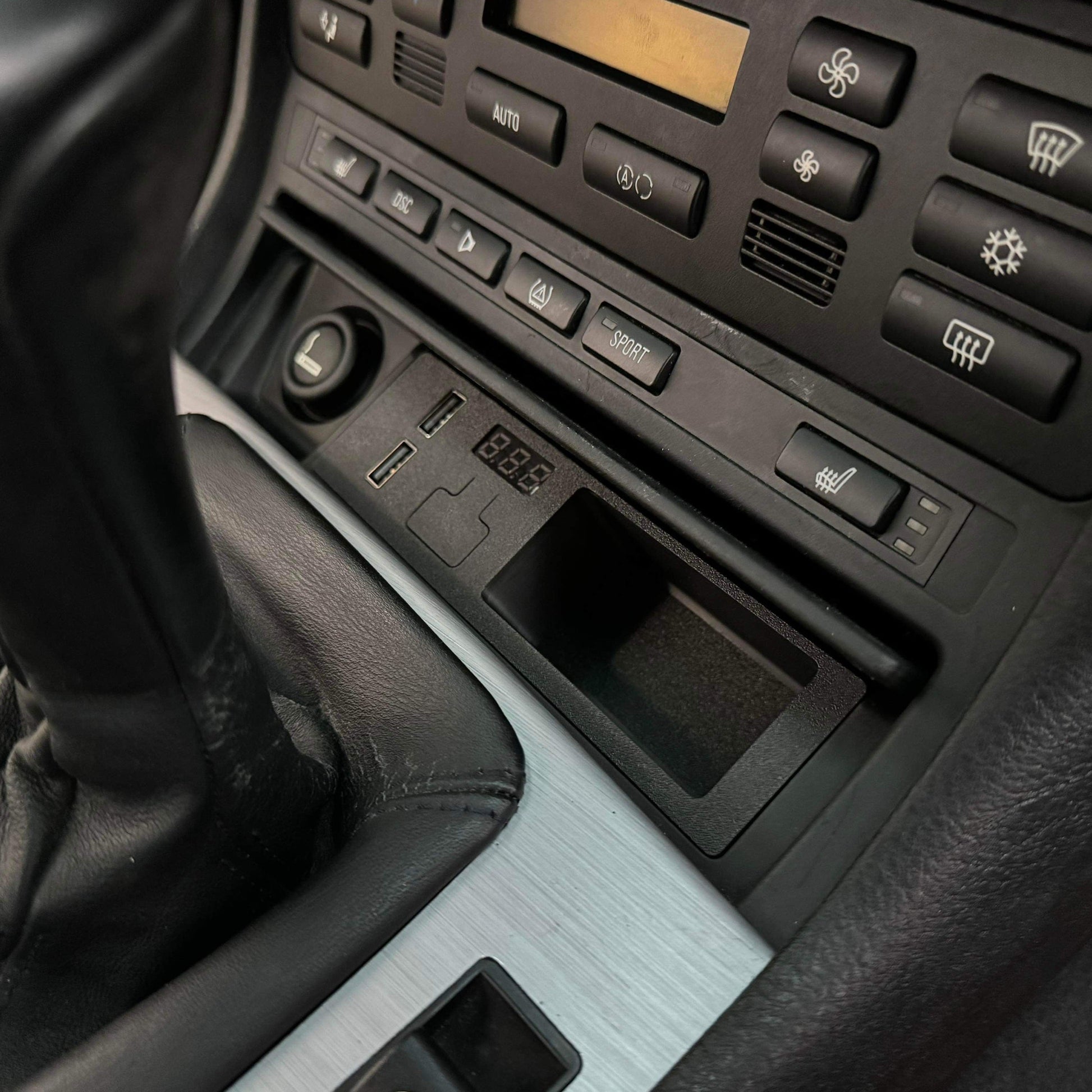

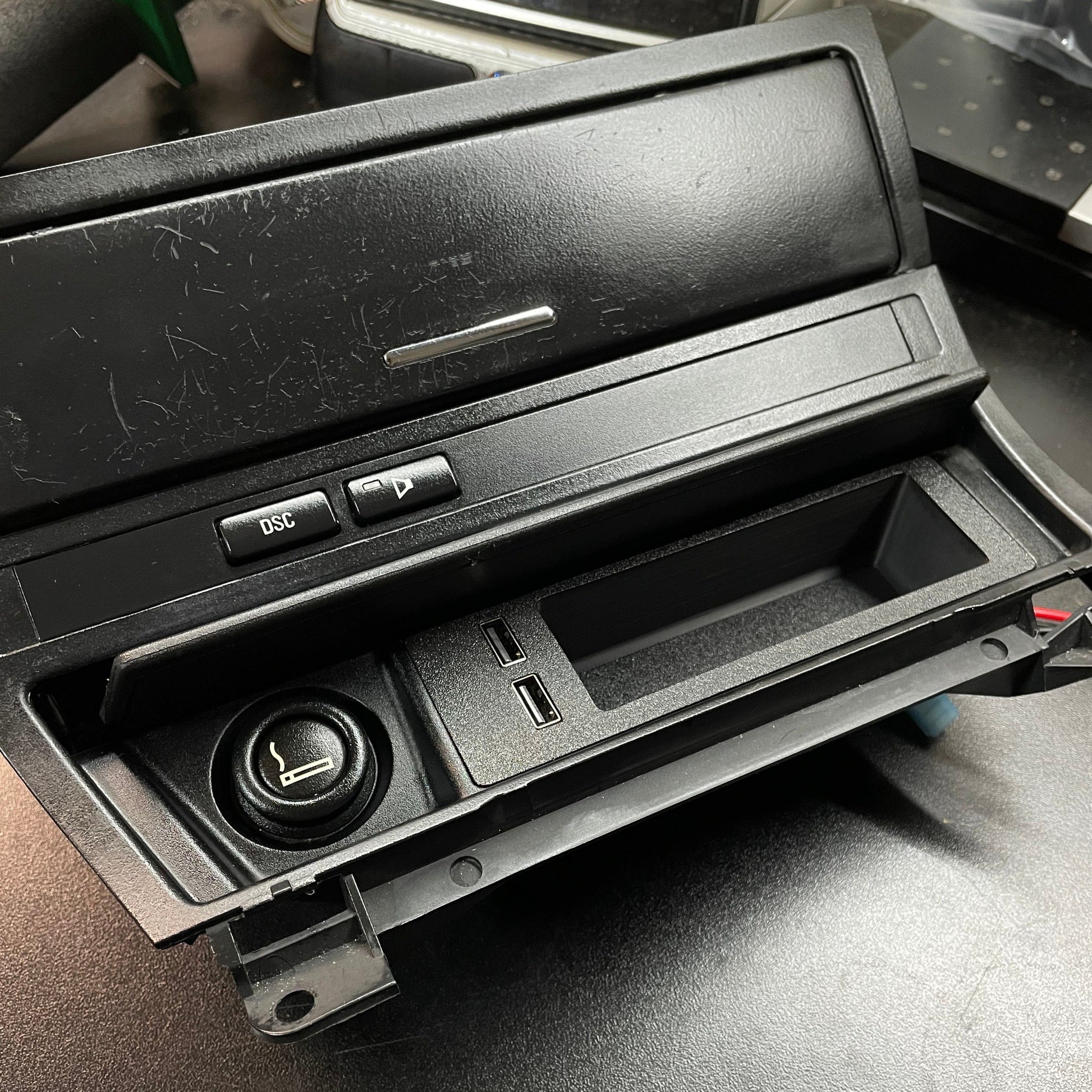

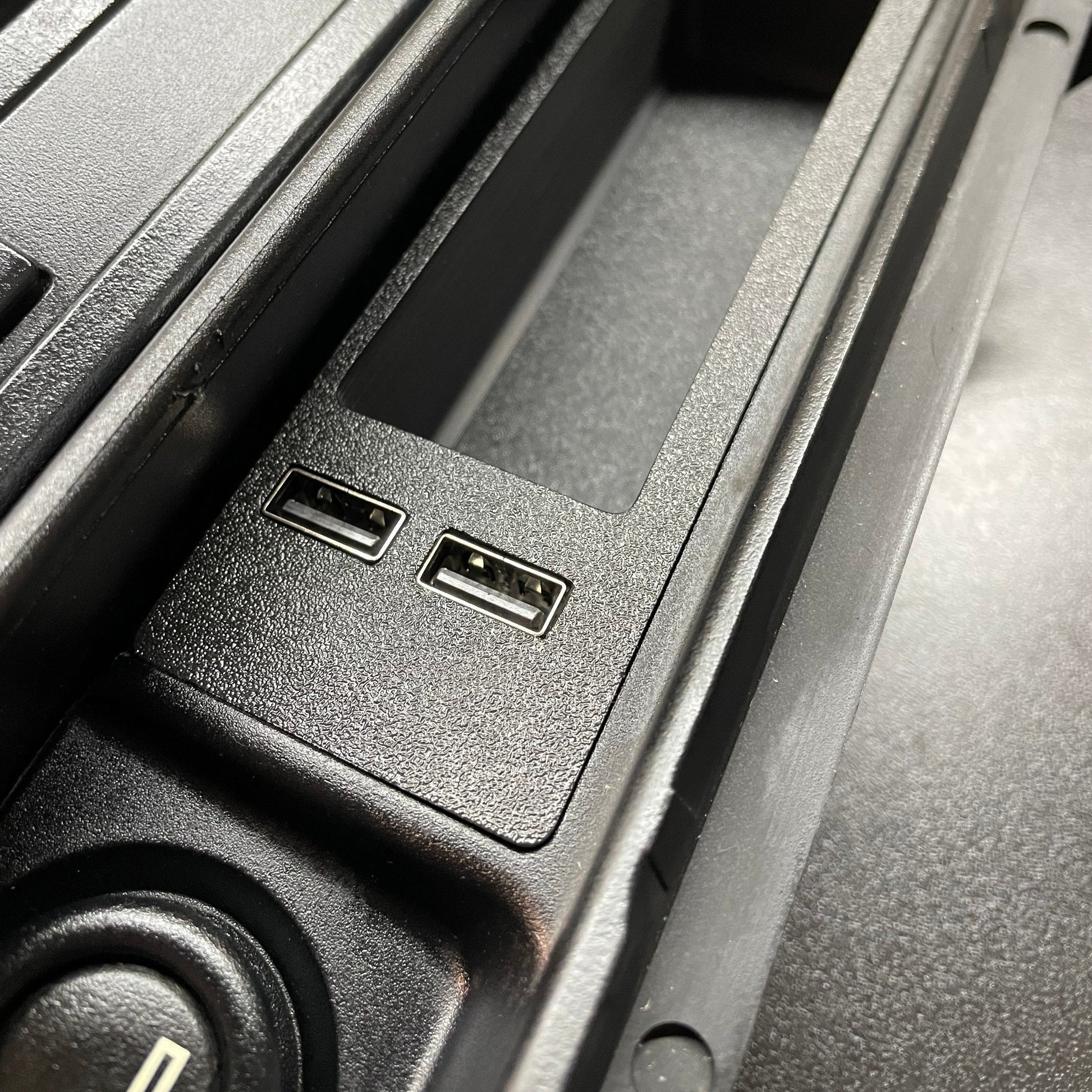

Add USB quick charge ports and a switchable voltmeter to your E46 with an OEM level of quality. Plug & Play, 12 volt port still works after install.

  • Easy ~30-Minute Install (see video)

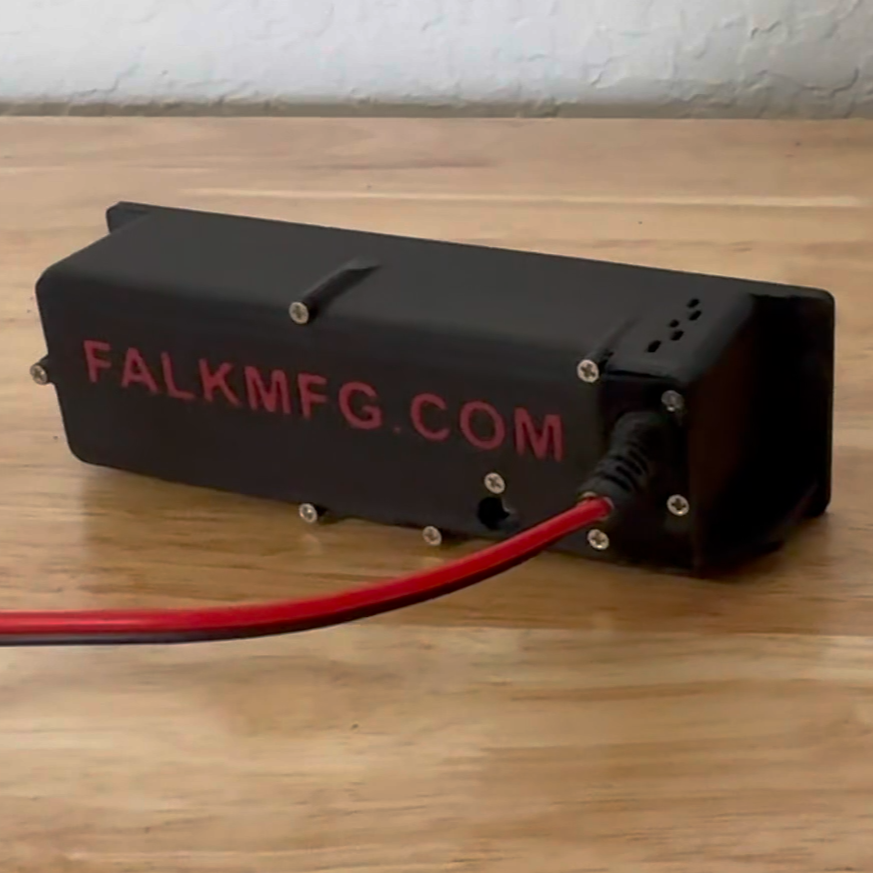

  • PLUG & PLAY - No cutting wires - 12v port still works after install
  • Quick Charging for the Latest Generations of Apple&Android Devices
  • Up to 54W of combined charging power!

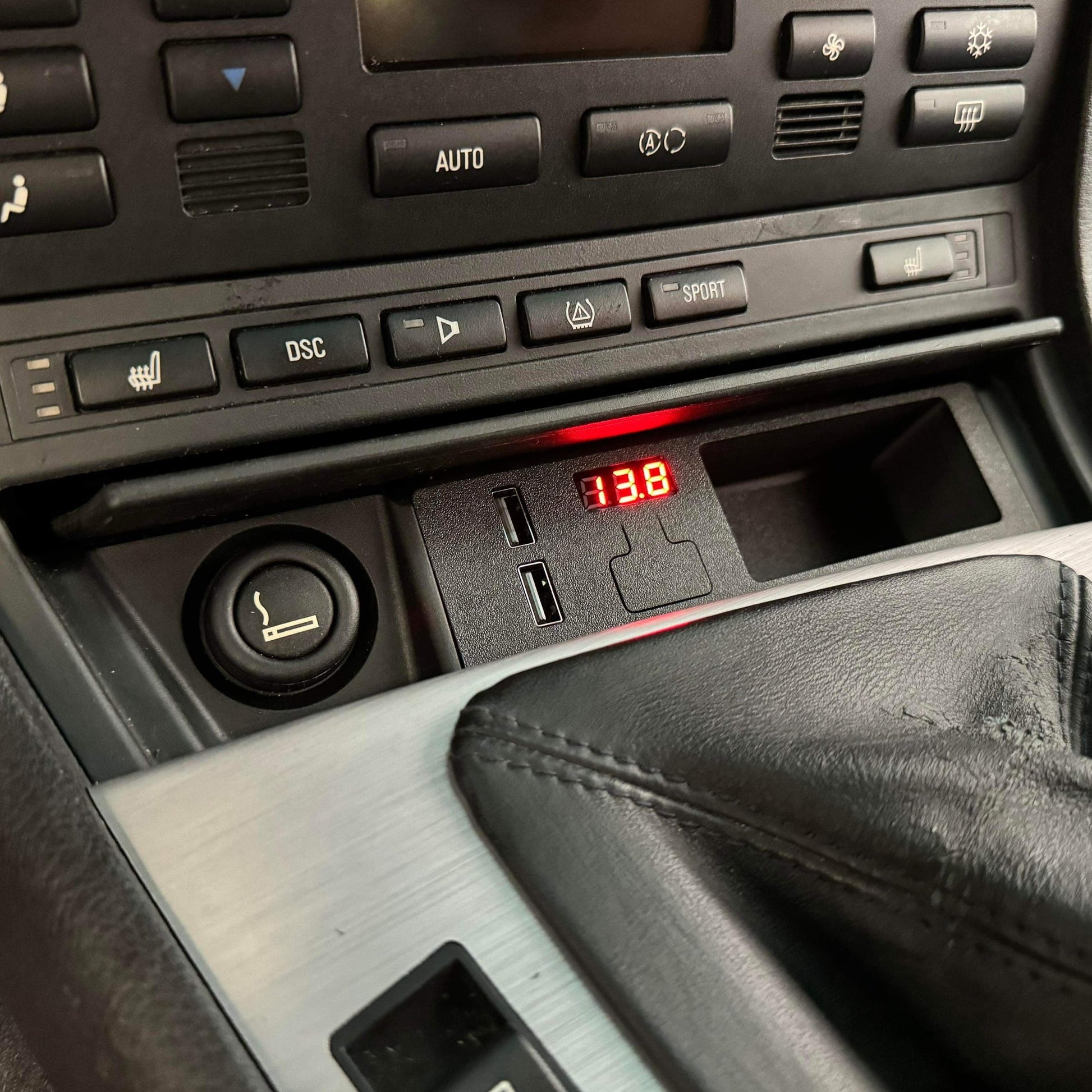

  • Fast Refresh Rate Tinted Voltmeter +/- 0.2v
  • OEM-Grade Textured Finish
  • High-Quality ASA Material - Resists UV Rays & Fading
  • Low mA idle draw when not charging

*RHD versions are not pictured but will be mirrored versions. (USB ports towards the driver)*

Power, battery & installation FAQTap or click to expandTap or click to collapse

Does it turn off with the ignition?

The plug-and-play kit uses the vehicle's existing power feed. Check power behavior on your car with the ignition on and after key-off; do not assume that plug-and-play means ignition-switched. Want ignition-only operation? Contact us before changing the wiring.

Will it drain my battery?

The module is designed for low idle current. Battery condition, other accessories and time parked also matter. Low draw is not zero draw; contact us about your setup if the car spends long periods parked.

Which fuse should I use for switched power?

There isn't one ignition-switched fuse recommendation that applies to every E46. Have a qualified installer use the fuse card and wiring information for your exact vehicle to verify a suitable switched circuit and its capacity. Never increase a factory fuse rating.

Does the original 12V socket still work?

Yes. The supplied plug-and-play harness keeps the original 12V socket functional. See the installation video and our E46 USB and voltmeter installation guide for the installation steps and checks.

SPECS & DETAILS:

  • USB-C Module Max Wattage: 30W
  • Charging Protocols: PD3.1, QC3.0, FCP, SCP, AFC, BC1.2, & more
  • USB-A Module Max Wattage: 24W
  • Charging Protocols: QC3.0, BC1.2, FCP, AFC, SFCP, & more

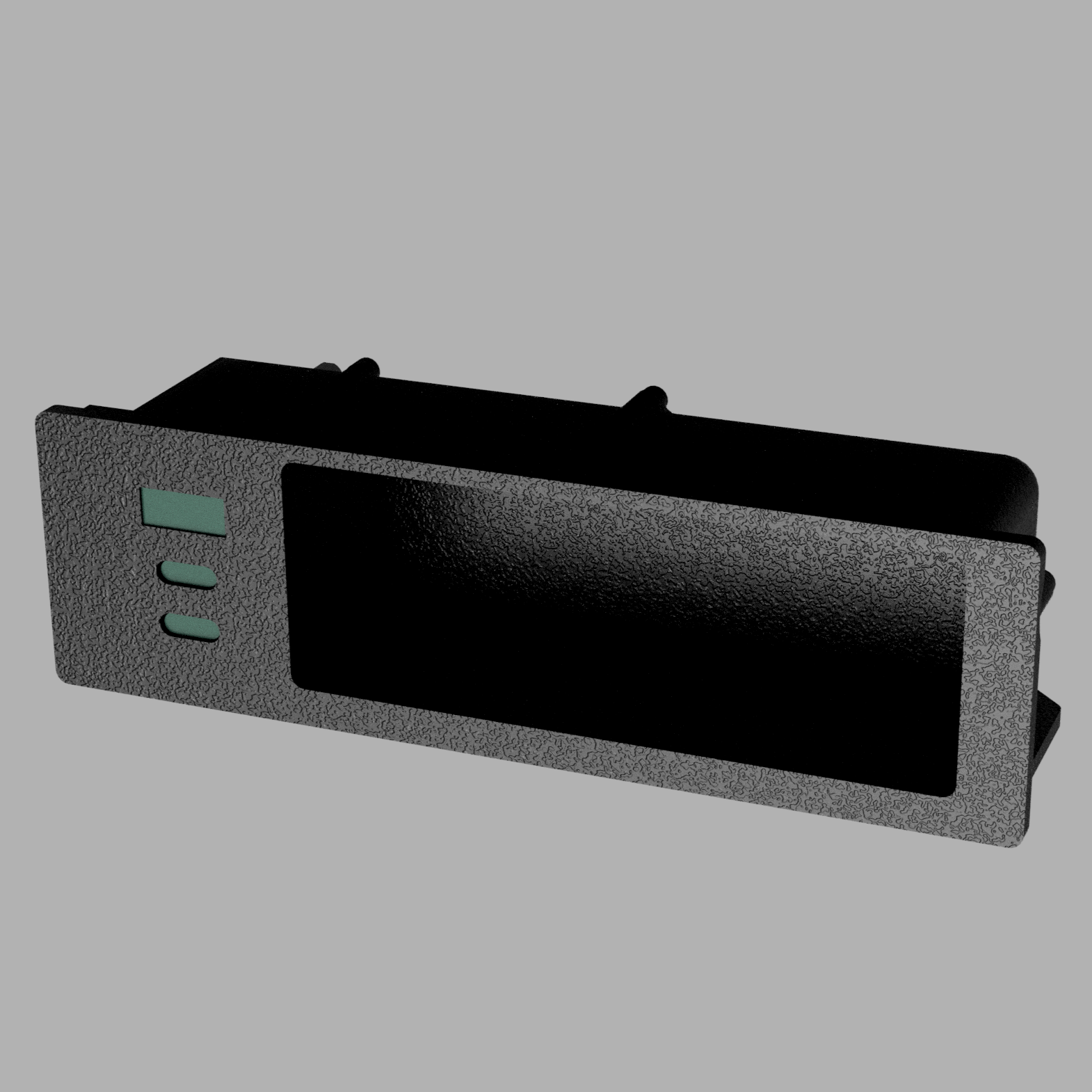

  • Dual USB-C+A+Volt Pocket Size: 71x33x32 (Wide x Tall x Deep)
  • Dual USB-C+A Pocket Size:          94x33x32 (mm, Wide x Tall x Deep)
  • Dual USB-A+Volt Pocket size:      67x33x32 (mm, Wide x Tall x Deep)
  • Dual USB-A Pocket size:             102x33x32 (mm, Wide x Tall x Deep)

Every unit is tested before shipment and is backed by a 1-year warranty. The boards we use have: over/under volt, input/output over-current, short circuit, and overheating protection circuits built-in. These built-in protections protect your investment in our product and give you peace of mind installing this module in your vehicle.

RELATED PART NUMBERS: 51168208369, 51168259494, 51168222183, 61349316116, 51168208722
